3TP Series Mud Pump Units product introduction

  3TP Series Mud Pump Units

PRODUCT INTRODUCTION

Shandong BEYOND Engineering & Mining Equipment Co., Ltd

www.beyondrig.com  support@beyondrig.com

2026

1. Product Overview

The 3TP series mud pump units are high-efficiency fluid delivery equipment specifically designed for complex geological conditions and high-intensity drilling operations. These pump units feature an advanced triplex piston design, ensuring smooth and continuous mud delivery. Whether for deep well drilling, horizontal directional drilling (HDD), oil and gas exploration, or urban infrastructure construction, the 3TP series pump units deliver outstanding performance.

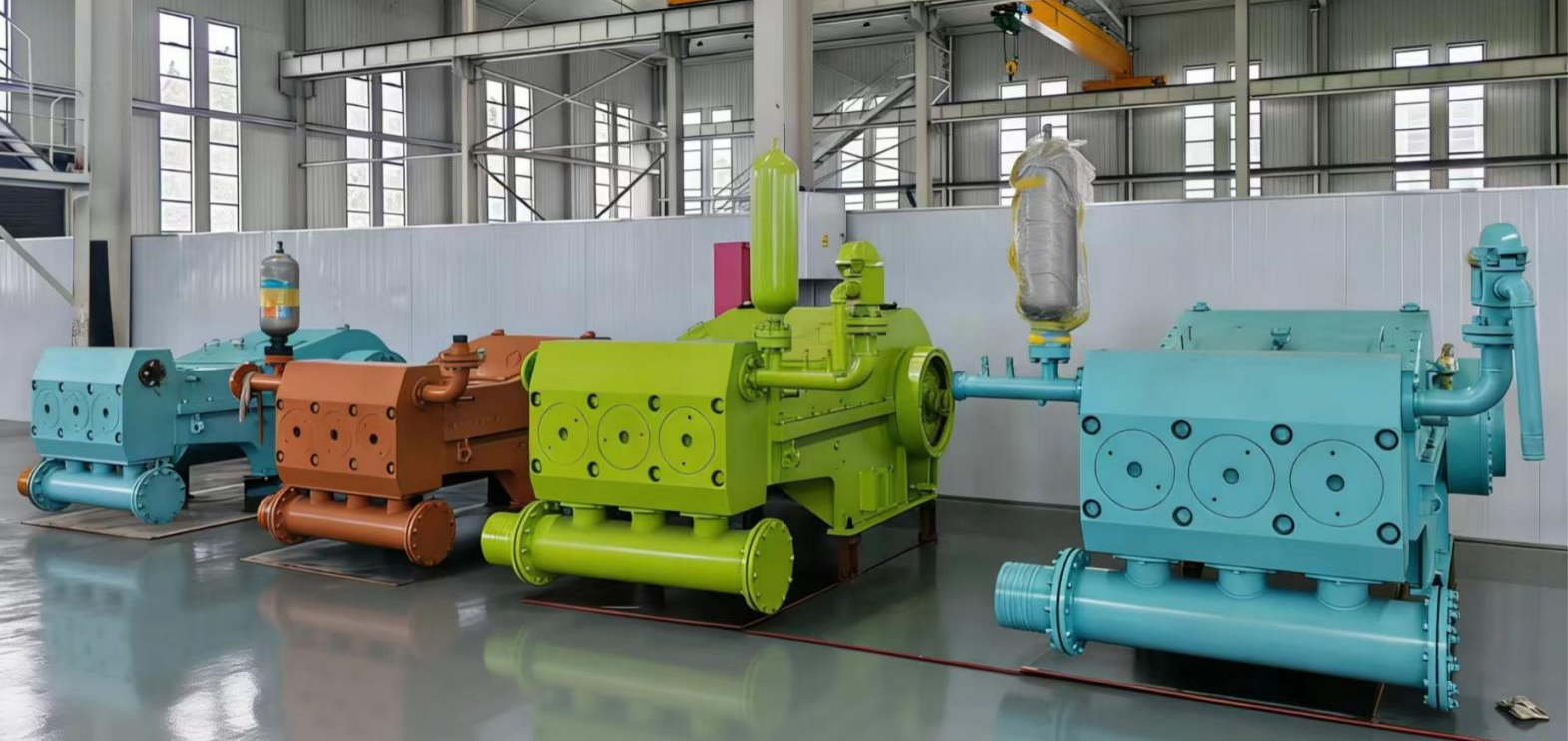

This series covers a range of models from light-duty to heavy-duty, including 3TP-1200S, 3TP-1800S, 3TP-2500, 3TP-2500S, 3DP-2800S, 3TP-3200S, and 3TP-3500S, to meet the needs of projects of varying scales and depths.

2. Core Technical Features

The 3TP series mud pump units integrate multiple core technologies in their design and manufacturing to ensure reliability and high efficiency under harsh working conditions:

• High-Pressure Stable Output: The triplex piston design effectively reduces pressure pulsation, ensuring smooth and continuous mud delivery. Even under extreme pressure, it maintains a consistent fluid flow rate. This is crucial for deep well drilling and HDD projects, effectively preventing wellbore collapse and drill bit overheating.

• Efficient Mud Circulation and Cuttings Removal: The pump units can easily handle high-viscosity drilling mud (such as bentonite mud), ensuring that cuttings are effectively transported to the surface, thereby reducing drill bit clogging and downtime, and significantly improving drilling efficiency.

• Durable and Wear-Resistant Structure: Core components utilize high-strength alloy pistons, corrosion-resistant valves, and reinforced cylinders, capable of withstanding harsh drilling conditions and abrasive mud. This greatly extends the pump's service life and reduces maintenance costs.

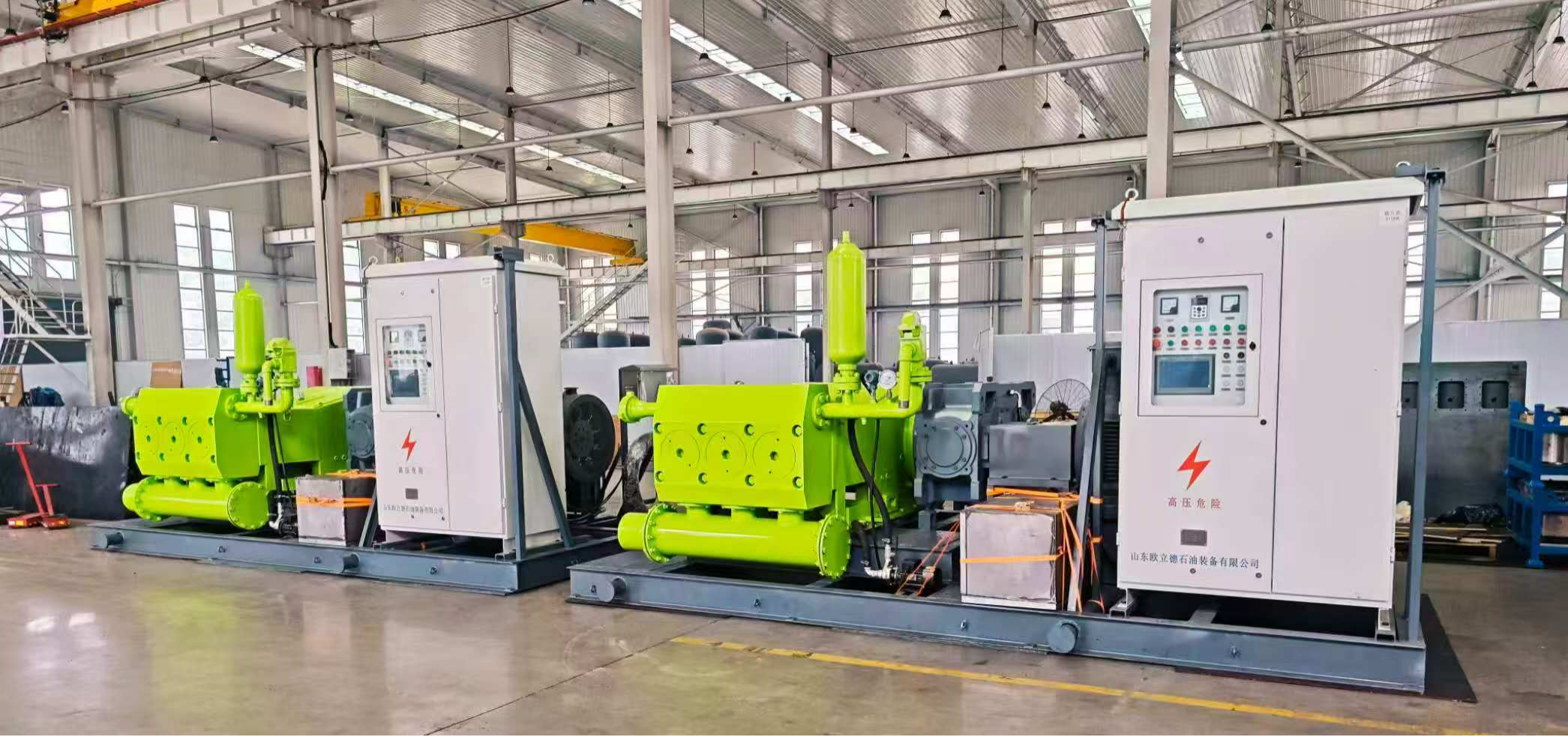

• Precise Flow Control and Customization: Equipped with advanced control systems (such as wired remote throttle and clutch control), operators can precisely adjust mud flow to meet the unique requirements of different projects. Digital monitoring systems provide real-time data, supporting immediate adjustments.

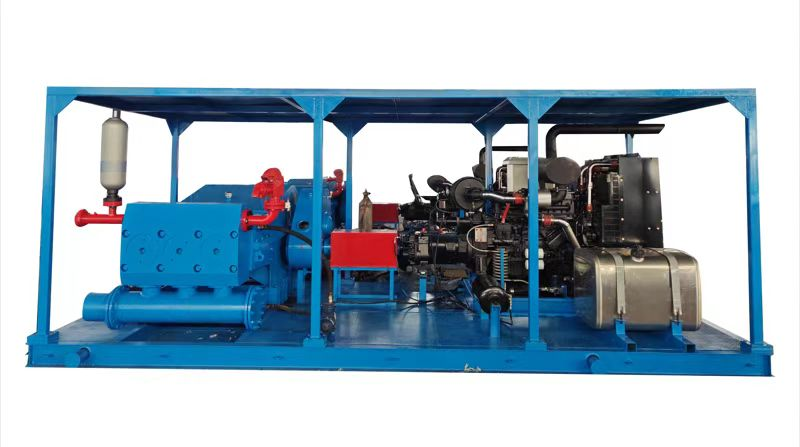

• Seamless Integration with Drilling Rigs: Designed with standard connection points and flexible installation options (fixed or skid-mounted), it is easy to integrate with various drilling equipment, including truck-mounted water well drilling rigs, trenchless drilling rigs, and HDD rigs.

• Powerful Power System: All models come standard with Weichai high-performance diesel engines, paired with FAST 10-speed manual transmissions, providing ample power reserve and flexible gear selection.

3. Main Models and Technical Parameters

The 3TP series mud pump units include several models. Below is a comparison of the technical parameters for the main models:

4. Performance Curve Analysis

The relationship between mud pump flow rate and pressure as a function of strokes per minute (SPM) is a crucial indicator for evaluating its performance. Below are the performance characteristics of three main models:

4.1 3TP-1800S Performance

At 60 rpm, the flow rate is 623 L/min with a pressure of up to 9 MPa; as the speed increases to 175 rpm, the flow rate reaches a maximum of 1816 L/min, with the pressure maintained at 5 MPa. This model maintains very high-pressure output at small to medium flow rates.

4.2 3TP-2500 Performance

At 60 rpm, the flow rate is 1220 L/min with a pressure of 9 MPa; at 140 rpm, the flow rate reaches 2840 L/min with a pressure of 4.5 MPa. This model achieves an excellent balance between flow rate and pressure.

4.3 3TP-3200S Performance

As a heavy-duty pump unit, it can deliver a flow rate of 579 L/min and a high pressure of 10 MPa at a low speed of 25 rpm; at 150 rpm, the flow rate surges to 3476 L/min, with the pressure maintained at 5 MPa. It is highly suitable for large-scale projects requiring high flow rates and ultra-high pressures.

5. Global Market Applications and Selection Guide

The 3TP series mud pump units are widely applied in complex engineering projects across various regions globally. Based on regional market characteristics and engineering demands, we provide the following selection recommendations:

5.1 Middle East and Central Asia: Challenges of Deep Wells and Hard Rock

• Market Characteristics: The Middle East (e.g., Saudi Arabia, UAE) and Central Asia (e.g., Kazakhstan, Uzbekistan) are hubs for global oil and gas, large-scale water conservancy, and infrastructure construction. Geological conditions are complex, often involving saline-alkali soils and hard rock.

• Recommended Model: 3TP-3200S

• Core Advantages: This model offers extreme pressure (10 MPa) and ultra-high flow rate (3200 L/min), easily meeting the stringent requirements for high power and high-pressure output in deep oil and gas wells, large-scale water diversion projects, and cross-sea/underground pipeline HDD projects.

5.2 Southeast Asia and Latin America: Urban Infrastructure and Oil & Gas Support

• Market Characteristics: Southeast Asia (e.g., Indonesia, Vietnam) is experiencing a boom in infrastructure construction, with widespread application of HDD technology; Latin America (e.g., Brazil, Mexico) continues to invest in deep-sea/onshore oil and gas field development and digital infrastructure.

• Recommended Model: 3TP-2500

• Core Advantages: Offers optimal overall performance, achieving an excellent balance between flow rate and pressure. It is perfectly suited for the variable soft soils and cohesive strata in Southeast Asia, as well as the complex onshore oil and gas and large-scale infrastructure environments in Brazil.

5.3 Africa and North America: Dual Demand for Durability and Intelligence

• Market Characteristics: Africa (e.g., Nigeria, Ethiopia) primarily focuses on civil water wells and mining exploration, with high price sensitivity and demand for durability; the North American market (e.g., USA, Canada) is mature, with stringent environmental emission standards and requirements for intelligent monitoring, and growing demand for mini/midi HDD.

• Recommended Model: 3TP-1800S

• Core Advantages: Compact and efficient, offering high cost-effectiveness. In the African market, its
features of "easy maintenance and long lifespan" are highly attractive; in the North American market, by configuring high-standard emission engines and enhancing digital monitoring and precise flow control functions, it can meet the strict requirements for construction accuracy and environmental protection.

6. Conclusion

The 3TP series mud pump units, with their outstanding performance, reliable quality, and flexible configurations, have become an ideal choice in the global drilling and trenchless engineering fields. Whether facing the hard rock formations of the Middle East, the complex soft soils of Southeast Asia, or the stringent environmental standards of North America, the 3TP series can provide tailored fluid delivery solutions, helping clients efficiently and safely complete various engineering challenges.
