Our water well drilling rig lineup covers 300–1000 m groundwater development with truck‑mounted and crawler platforms. Each package is a one‑stop solution with matched BW or triplex mud pumps, screw air compressors, drill pipes, casing, and tooling. This reduces sourcing time and integration risk. As an export‑focused drilling equipment manufacturer, we deliver fast configuration matching, export‑ready builds, and proven performance across varied formations. Request a quote to configure your borehole rig now.
Every rig is built for durability, fast deployment, and clean circulation. The design minimizes non‑productive time and helps safeguard aquifers. A one‑stop package integrates pumps, compressors, and tooling from a single supplier, which streamlines commissioning and after‑service across your fleet.
We match BW mud pumps, triplex pumps, screw air compressors, drill pipes, casings, and downhole tools to your configuration. This ensures performance compatibility and reduces multi‑vendor coordination.
Expect rapid configuration proposals, export documentation, and country‑specific options that shorten lead time. Dedicated technical support covers selection, commissioning, operator training, and spares throughout the rig’s life.
Optimized mud hydraulics and optional cyclone solids control reduce recirculation and improve fluid cleanliness. The result is accurate aquifer development, efficient drilling, and long‑term well performance.
We have delivered custom builds to Venezuela, India, Turkey, Guinea, Saudi Arabia, and Ethiopia. These projects show reliable performance across climates and geology. See outcomes in our global drilling case studies.
The platforms cover wide drilling envelopes with robust powertrains and hoisting systems. Matched fluid and air packages maintain borehole integrity while sustaining penetration rates and clean circulation.
Configure diameters of 140–450 mm, with larger sizes by reaming. Typical depth capability is 300–1000 m, depending on formation and circulation method. This covers potable water, irrigation, and industrial supply wells.
High‑torque rotary tables, reliable diesel power, and synchronized feed and hoist deliver steady WOB and consistent penetration. The mast and rod handling design supports safe pipe tripping and casing runs.
BW series (BW250/350/450/600/850/1200/1500) provide lower pressure with higher displacement than 3NB/F series. They are well suited to geology and groundwater work. Triplex options, such as the 3TP‑2800, supply higher pressure for deeper or larger‑diameter wells.
Track‑ or skid‑mounted screw air compressors (DC‑1300, DC‑1525H) deliver stable airflow and pressure for DTH in hard rock. The consistent air supply improves hole cleaning and hammer efficiency.
A water well drilling rig supports diverse programs, from public water systems to geothermal supply. The equipment delivers consistent results across different geologies and climates.
Drill production and monitoring wells for towns and villages. Optimize screen placement and grouting for long service life and reliable outputs.
Deliver high‑yield irrigation wells with proper gravel pack and rigorous development. Aim for stable flow and low turbidity.
Support factories, industrial parks, and storage sites with dependable process water and fire‑fighting reserves.
Use the same platform for geothermal aquifer access or reinjection wells. Align mud or air systems and bit selection with local geology.
Select the right method to match formation behavior and water table conditions. This maximizes penetration and maintains borehole integrity.
Mud rotary provides stable cuttings transport and wall support in unconsolidated sands and clays. Adjust flow rate, viscosity, and bit type to reduce collapse and fluid loss.
In hard rock, a DTH hammer achieves high penetration rates when powered by screw compressors. Manage airlift for efficient cuttings removal and aquifer protection.
Use conductor casing, reamers, and stabilizers to maintain alignment. Enlarge holes for screens and protect aquifers during development and completion.
Align depth, diameter, formation, mobility, and circulation power with your program and local service conditions. This helps you select an appropriate model without over‑ or under‑specifying.
Match target depth and hole size to rotary torque, hoist capacity, and pump or compressor performance. Choose mud rotary for collapsible sands and DTH for hard rock.

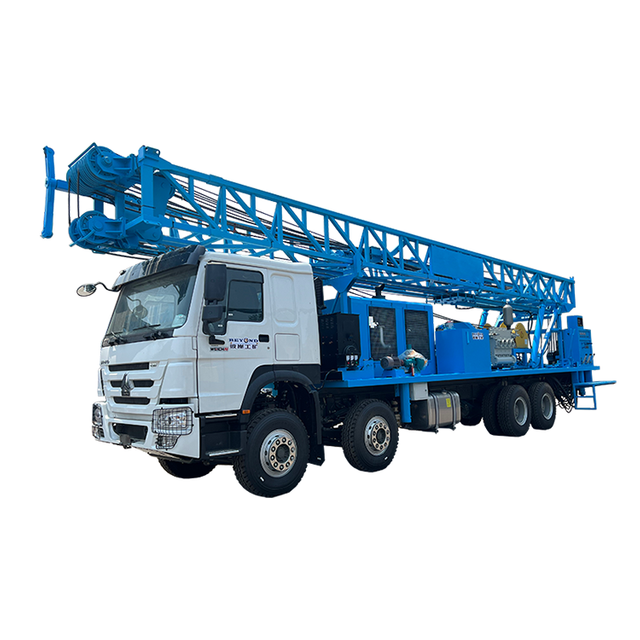

Pick a truck‑mounted unit for highway travel and rapid redeployment. Choose a crawler for remote, soft, or hilly terrain where precise positioning is essential.
Size BW or triplex pumps and compressors to bit size and expected penetration rate. Proper sizing avoids weak circulation and cuttings overload.
Balance capex with delivery time, local parts availability, and commissioning and training options. For lifecycle support details, visit our after‑sale technical support and services.
Bundle compatible pumps, compressors, and tooling to maximize performance and simplify procurement.
These lower‑pressure, higher‑displacement pumps suit geology and groundwater work. They maintain annular velocity without overpressurizing formations.
When depth and diameter demand higher pressure, the 3TP‑2800 provides stable flow and pressure for deep or large holes.
Track or skid screw air compressors deliver reliable airflow and pressure for DTH operations in hard rock. Consistent air supports hammer performance.
Matched drill strings, heavy‑duty casings, reamers, and stabilizers are engineered for straight holes and long service life. We optimize selections for your specific configuration.
Many suppliers promote generic “water well drilling.” We differentiate with clear model segmentation, defined depth and diameter ranges, and matched packages that cut integration risk. Review our case studies and request a quote to discuss your program.
