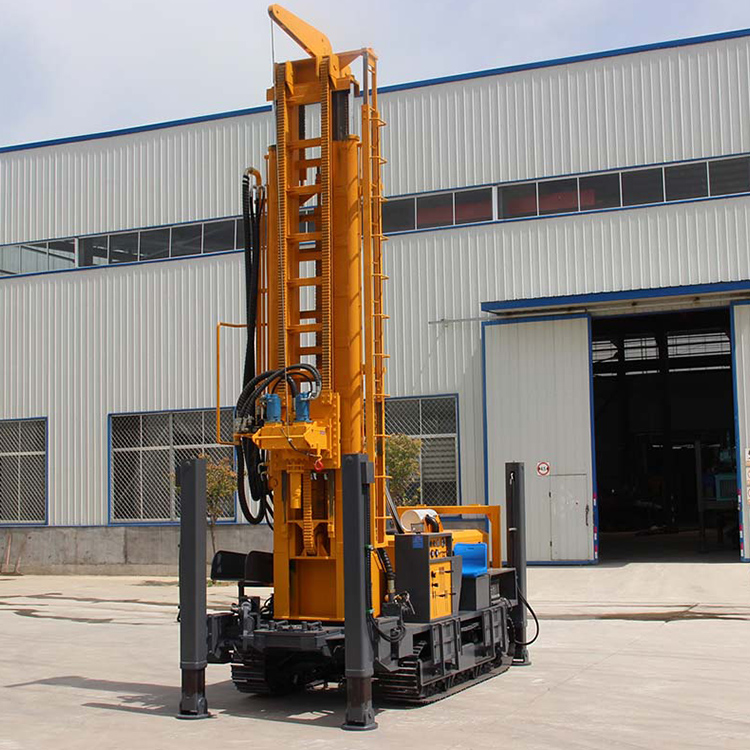

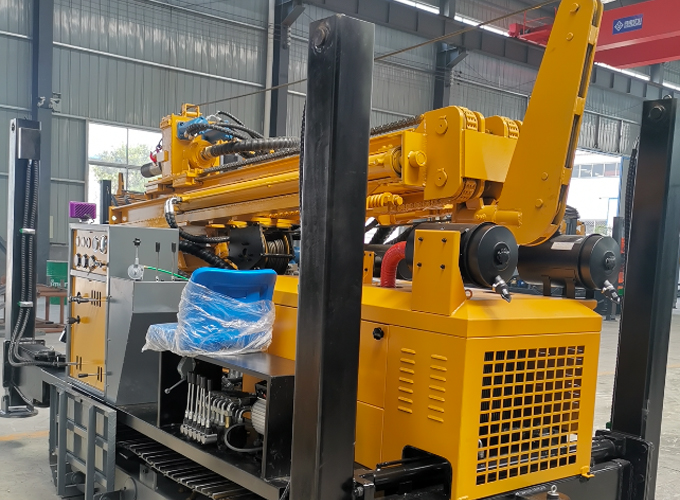

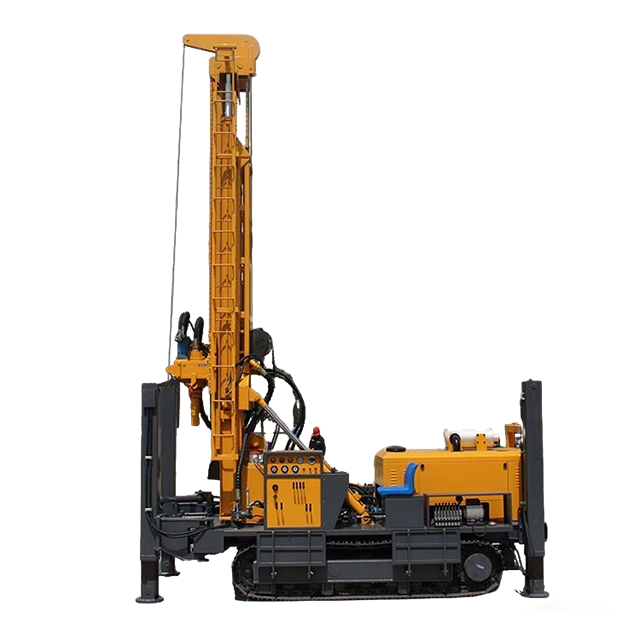

The BEYOND Crawler-mounted Hydraulic Water Drilling Rig is a high-performance equipment designed for water well drilling in challenging environments. As a Tracked Water Well Drilling Rig, it features a heavy-duty crawler chassis that enables exceptional mobility across rough, muddy, or uneven terrain—addressing the key challenge of accessing remote or difficult job sites. Powered by a hydraulic drive system, this Heavy-Duty Hydraulic Drilling Rig delivers stable power, efficient drilling, and easy operation, making it suitable for rural water supply, geological exploration, and small-to-medium water well projects where terrain adaptability and reliability are critical.
 |  |  |

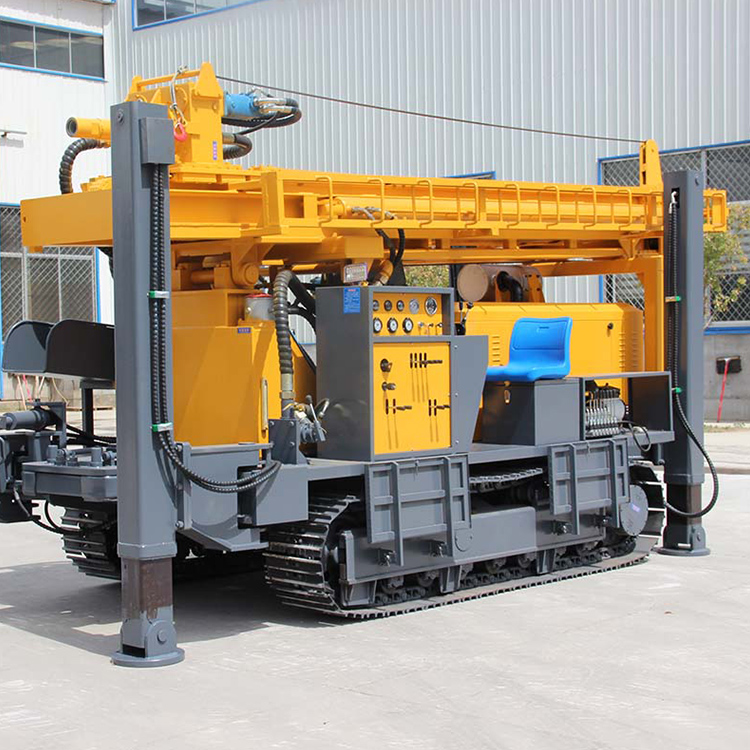

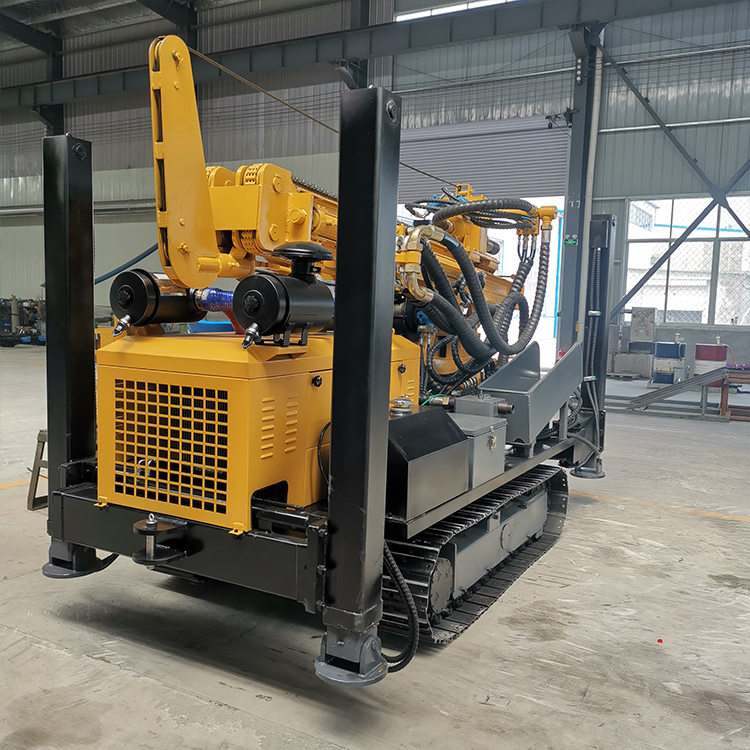

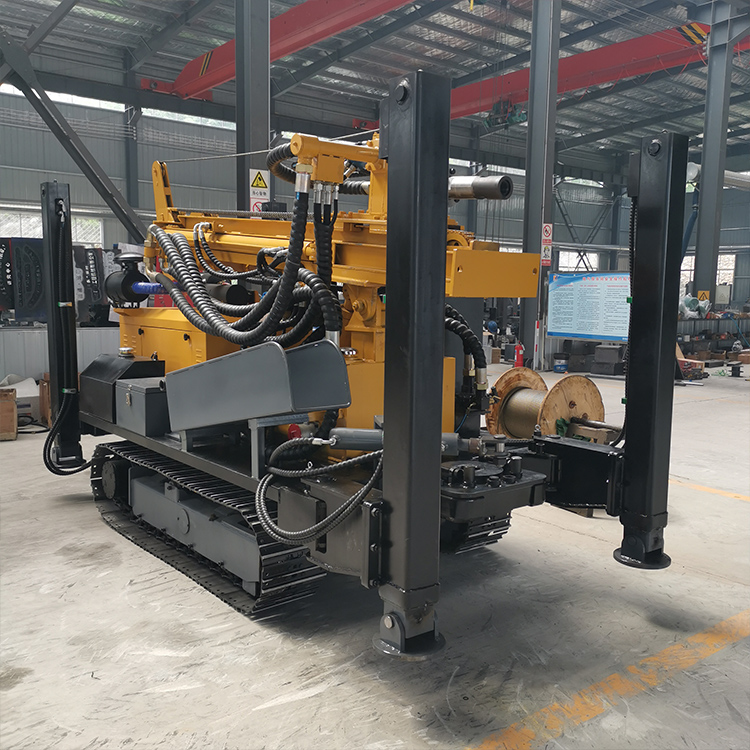

The Crawler-mounted Hydraulic Water Drilling Rig’s reinforced crawler chassis provides excellent stability and mobility on harsh terrains. It can navigate muddy, rocky, and sloped areas without getting stuck, making it ideal for remote rural or mountainous regions where traditional wheeled rigs struggle to operate. This terrain adaptability ensures construction can proceed smoothly regardless of site conditions.

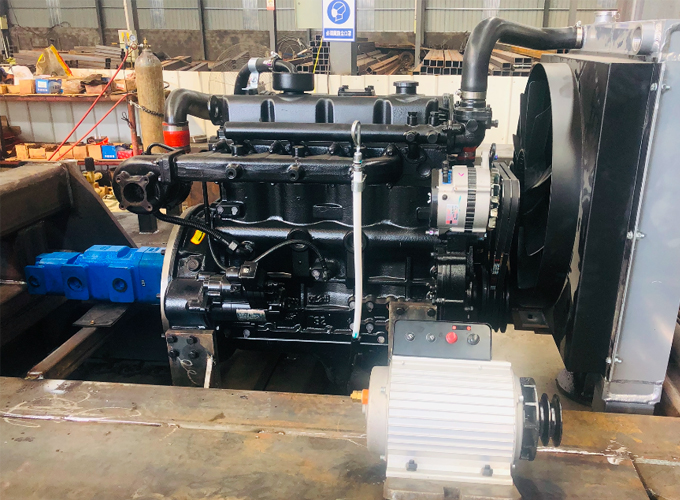

Equipped with a dual hydraulic pump drive system, the rig delivers consistent power and stepless speed regulation. The hydraulic system allows precise adjustment of drilling speed, adapting to different strata from soil to hard rock. This efficiency translates to faster drilling progress and shorter project timelines compared to mechanical drive alternatives.
The Remote Area Water Drilling Rig supports a broad range of drilling depths and borehole diameters, catering to diverse project needs. It can handle various formations, including soil, sand, weathered rock, and medium-hard rock, with replaceable drill bits that enhance versatility. Whether for shallow rural wells or deeper geological exploration, this rig meets multiple application requirements.

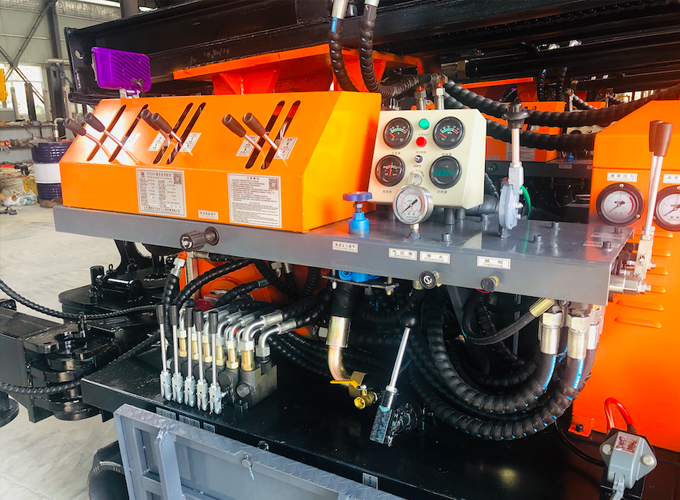

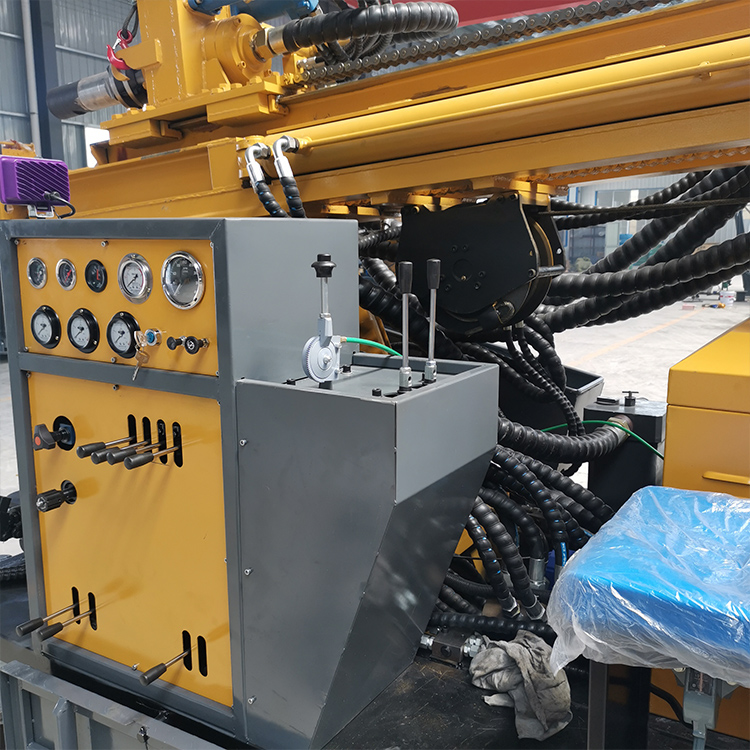

Featuring an LCD operation panel, the rig displays real-time drilling parameters, allowing operators to monitor and adjust operations easily. It includes an intelligent overload protection system and multiple emergency stop buttons, ensuring safe operation even in complex environments. The IP54 dustproof and waterproof certification further enhances reliability in harsh conditions.
Key components like hydraulic cylinders and drill pipes are constructed from high-strength alloy steel, ensuring long service life. The modular design enables quick disassembly and assembly of parts, simplifying maintenance. Routine tasks are minimal, reducing annual maintenance costs and downtime.
Model | BCH-130 | BCH-180R | BCH-280 | BCH-200 | BCH-200R | BCH-300 | BCH-350 | BCH-400 | BCH-500 | BCH-600 | BCH-800 |
Drilling Dia. (mm) | 100-219 | 140-254 | 140-305 | 140-305 | 140-273 | 140-325 | 140-325 | 140-350 | 140-350 | 140-350 | 140-400 |
Drilling Depth (m) | 130 | 180 | 280 | 200 | 200 | 300 | 350 | 400 | 500 | 600 | 700 |
One Time Drill Depth (m) | 2.3 | 3.3 | 6.6 | 3.3 | 3.3 | 3.4 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
Driving Speed (km/h) | 3 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Climbing Capacity | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Main Power (kw) | 23 | 55 | 70 | 65-70 | 65 | 85 | 92 | 92 | 118 | 132 | 150 |
Working Pressure (Mpa) | 1.45-2.5 | 1.7-2.5 | 1.7-3.0 | 1.7-3.0 | 1.7-3.0 | 1.7-3.0 | 1.7-3.4 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 |
Air Consumption (m3/min) | 15-29 | 17-31 | 17-30 | 17-31 | 17-31 | 17-36 | 17-36 | 17-35 | 17-42 | 17-42 | 17-42 |
Drill Pipe Dia. (mm) | 76/89 | 76/89 | 76/89 | 76/89 | 76/89 | 76/89/102 | 89/102 | 89/102/108 | 102/108/114 | 102/108/114 | 102/108/114 |
Drill Pipe Length (m) | 1.5/2.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/20./3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 |
Lift Force (T) | 6 | 10 | 17 | 15 | 10 | 18 | 24 | 25 | 26 | 28 | 30 |
Rotating Speed (RPM) | 740-65 | 45-65 | 40-70 | 45-70 | 45-65 | 40-70 | 55-115 | 45-115 | 40-100 | 45-115 | 55-120 |
Rotating Torque (N.m) | 2200-3000 | 3200-4500 | 4300-5500 | 4000-5300 | 3200-4600 | 5700-7500 | 6200-8500 | 6500-9000 | 7500-10000 | 8500-11000 | 8850-13150 |
Dimension (L*W*H)（m) | 4*1.45*2.05 | 3.8*1.5*2.2 | 5.9*1.8*2.45 | 4*1.75*2.45 | 3.95*1.7*2.3 | 4.1*1.95*2.6 | 5.9*2*2.85 | 5.9*2.1*2.85 | 6.2*2.2*2.95 | 6.2*2.2*2.95 | 6.3*2.3*2.95 |
Weight (Ton) | 3 | 4.5 | 6.5 | 5.6 | 4.7 | 7 | 9 | 10 | 11.5 | 12 | 13 |
Note: 1. Model Explanation: B=Beyond; C=Crawler-mounted; 800/600/500/…=Rated Drilling Depth; R=Rubber Crawler; | |||||||||||
The Crawler-mounted Hydraulic Water Drilling Rig is ideal for rural water supply projects, accessing remote villages and mountainous areas to drill reliable water wells. Its terrain adaptability ensures communities in hard-to-reach locations can access clean groundwater.
In mountainous agricultural areas, the Tracked Water Well Drilling Rig drills irrigation wells to support crop growth. It navigates steep slopes and uneven terrain, providing a consistent water supply for small-scale farms and gardens.
For geological exploration in remote regions, the Remote Area Water Drilling Rig collects subsurface samples efficiently. Its hydraulic drive and terrain adaptability make it suitable for surveying mineral resources or assessing strata stability in isolated areas.
During emergency situations like droughts or natural disasters, the rig deploys quickly to drill emergency water wells for small communities. Its efficient drilling and easy operation ensure timely access to water when traditional supplies are disrupted.
In areas with muddy, rocky, or sloped terrain, the Heavy-Duty Hydraulic Drilling Rig excels in constructing water wells. It overcomes mobility challenges, ensuring reliable water access for residential, agricultural, or industrial use.
Yes, its crawler chassis supports operation on slopes up to a significant angle, providing stable performance even in mountainous or hilly areas.
The LCD operation panel displays real-time parameters, and controls are intuitive. Operators with basic training can manage drilling, speed adjustment, and safety functions easily.
It can handle diverse formations, including soil, sand, weathered rock, and medium-hard rock, with replaceable drill bits tailored to specific strata conditions.
Routine maintenance is minimal—monthly checks of hydraulic oil and filter cleaning are typically sufficient. The durable components and modular design reduce the need for frequent repairs.
Yes, the stable hydraulic drive system and durable construction support extended drilling sessions, making it ideal for projects that require consistent, long-term operation.
