We often view a water well drilling rig as mere heavy machinery. In reality, you are looking at a highly engineered system built to conquer immense geological resistance. It achieves this through a precise combination of rotational torque and applied downward pressure.
Whether you manage residential, agricultural, or municipal projects, understanding rig mechanics remains essential. It serves as your first line of defense to mitigate operational risks. This knowledge prevents sudden borehole collapse and protects your site environment. Furthermore, understanding these mechanics helps you control the Total Cost of Ownership (TCO) over the entire project lifecycle.
This article decodes the core components and operational processes driving modern groundwater extraction. We will explore the crucial evaluation criteria you need before breaking ground. By the end, you will know exactly how to shortlist or procure the optimal equipment for your specific geological conditions.
Core Functionality: Rig operation relies on balancing pull-down pressure and rotational torque while managing fluid circulation to clear rock cuttings.
Geological Matching: Efficiency dictates component selection; PDC bits are favored for soft-to-medium formations, while tricone (roller cone) bits and air-rotary systems dominate hard rock.
Contamination Prevention: Drilling is only half the job; precise casing installation (maintaining a 2-inch annulus) and grouting are mandatory for aquifer protection.
Procurement ROI: Upgrading to a high efficiency water well drilling rig with hydraulic direct drives and automated rod carousels significantly reduces labor costs and downtime.
To understand the equipment, we must establish a clear operational definition. We define it as a specialized, mobile infrastructure system. Engineers build these machines specifically to create vertical, stable boreholes into underground aquifers. They do not just dig dirt; they systematically crush and remove subterranean rock formations.
The core physics rely on transmitting immense mechanical energy. The machine uses a top drive or a traditional rotary table to generate this force. It sends rotational energy down through a string of drill rods. Manufacturers typically build these steel rods in 20-foot sections. At the very bottom, a specialized drill bit transfers all this kinetic energy directly into the earth.
We must also address a common industry misconception regarding water versus oil rigs. Both systems rely on similar underlying principles. They hoist heavy loads, rotate steel pipes, and circulate fluids. However, water well rigs operate at much shallower depths. Contractors typically drill between 30 and 300 meters for groundwater. More importantly, water wells lack highly pressurized combustible fluids. Therefore, they rarely require the extreme blowout preventer (BOP) stacks mandatory on petroleum sites.

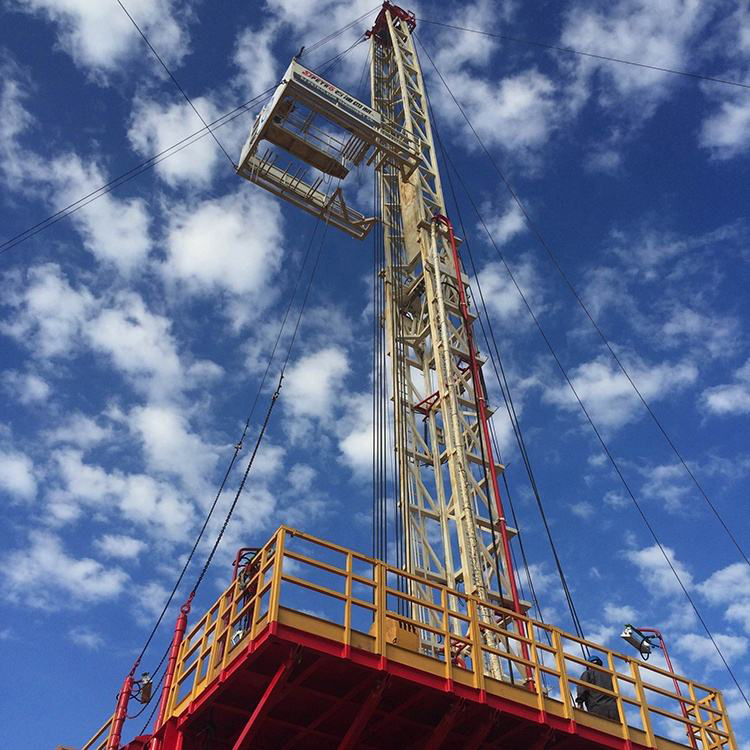

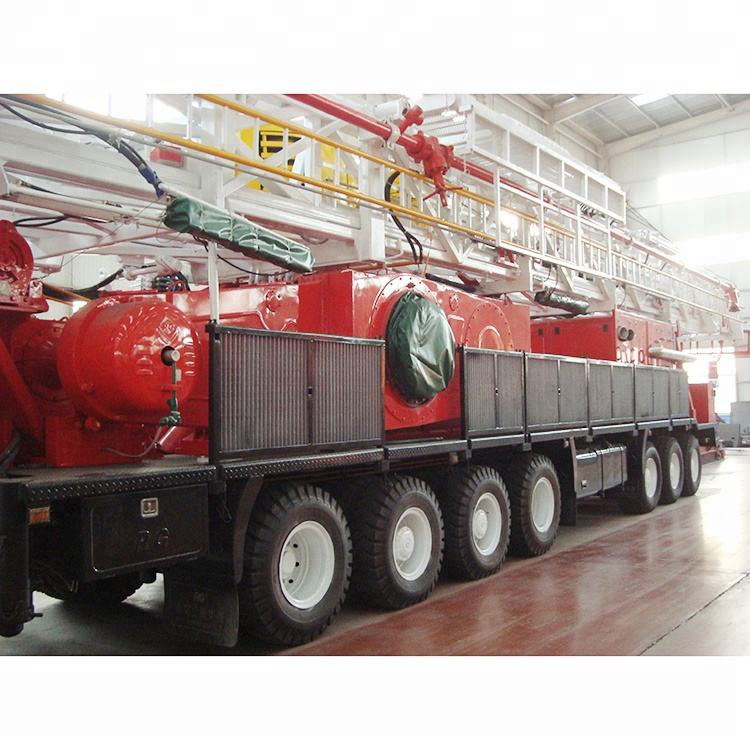

The vertical framework of the machine is called the derrick or mast. It manages all the heavy lifting and often reaches up to 40 feet in height. This structure must withstand extreme dynamic loads during operation.
Operational capacity relies heavily on pullback and pulldown forces. High-performance rigs routinely deliver between 25,000 and 40,000 lbs of pullback force. This power allows operators to extract heavy, mud-caked drill strings from deep boreholes without stalling. They also apply precise pulldown pressure to force the bit through dense clay or rock.
We see a major industry shift toward direct-drive hydraulic feed systems. Older mechanical designs relied on chains or cables. Those older setups carried severe snapping risks under high tension. Modern hydraulics eliminate these hazards. They offer smoother, safer, and more precise control over the drill string.
Selecting the right drill bit separates a successful project from a costly failure. The industry primarily divides bits into fixed cutter and roller cone categories.
Bit Type | Mechanism of Action | Ideal Geological Application | Wear Resistance |
|---|---|---|---|
PDC (Polycrystalline Diamond Compact) | Uses fixed, man-made diamond cutters to shear and shave rock. | Soft to medium formations (clay, shale, sandstone). | Immense wear resistance due to diamond composite. |
Tricone (Roller Cone) | Uses interlocking rotating gears with steel teeth or tungsten inserts to crush rock. | Hard, fractured formations (limestone, granite, boulders). | High durability under heavy vertical impact. |
Automated rod carousels represent another massive leap in modern drilling technology. Operators mount these carousels directly onto the mast. The system rapidly aligns and swaps drill rods without manual heavy lifting. This automation serves as a primary defining feature of a high efficiency water well drilling rig. It cuts manual labor drastically and accelerates penetration rates.
Drilling creates massive friction and debris. The circulation system manages these byproducts. In mud rotary management, mud pumps push a precise mixture of bentonite clay and water down the drill pipe. This fluid exits the bit, cools the cutting surfaces, and flows back up the annulus. The annulus is the gap between the drill pipe and the borehole wall. The mud stabilizes loose sediment walls and carries rock cuttings up to a surface shaker screen.
Air rotary systems take a completely different approach. They use high-pressure compressed air instead of liquid mud. The compressor blows air down the pipe to blast cuttings out of the hole. This method proves necessary for hard rock drilling. It also offers a distinct environmental advantage. By eliminating chemical muds, air drilling completely removes the risk of fluid-based aquifer contamination.
Finally, we must contrast positive and reverse circulation. In positive circulation, fluid travels down the inside of the pipe and up the annulus. Reverse circulation does the exact opposite. Fluid flows down the annulus and a vacuum sucks it up the inside of the drill pipe. Engineers use reverse circulation primarily for large municipal boreholes exceeding 300mm in diameter. It keeps massive borehole walls exceptionally clean.
Phase 1: Spudding and Surface Casing. The crew sets up the rig and stabilizes the platform. They begin by drilling the initial topsoil layer. This crucial first step allows them to install surface casing. The steel surface casing prevents immediate surface collapse and secures the site for deeper penetration.
Phase 2: Advancing the Borehole. The operator continuous pushes the bit deeper into the earth. They must constantly monitor rotational speed, downward pressure, and fluid viscosity. The crew adjusts these parameters in real-time as the bit transitions through varying strata, from soft clay to hard bedrock.
Phase 3: Well Development. This step dictates the final success of the project. The crew flushes the newly drilled hole with high-pressure air or clean water. This intense flushing clears microscopic pores in the aquifer. It removes remnant drilling mud and fine silts, maximizing long-term water yield.
Phase 4: Casing, Screens, and Grouting. The crew inserts the permanent steel or PVC casing. They attach a bottom screen to act as the primary filter for incoming water. They then fill the 2-inch annulus with a natural gravel pack. Finally, they seal the top 20 feet of the annulus with cement or bentonite grout. This sanitary seal prevents contaminated surface runoff from reaching the pure groundwater.
Selecting the wrong machine guarantees schedule delays and budget overruns. You must evaluate several core criteria before mobilizing equipment.
Geological Profile | Recommended Rig/Method | Bit Selection | Depth Limitation |
|---|---|---|---|
Very Soft Soils / Sands | Auger Rig | Continuous Flight Auger | Strictly under 150 feet |
Soft Clays / Loose Sediments | Mud-Rotary Rig | Drag Bit / PDC Bit | Deep capable (300m+) |
Hard Bedrock / Granite | Air-Rotary / DTH Hammer | Tricone / Diamond Setup | Deep capable (300m+) |
Geological compatibility always dictates your choice. Soft clays demand mud-rotary rigs. Hard bedrock strictly requires air-rotary setups. Auger rigs operate like giant screws. They work well but remain strictly limited to soft soils under 150 feet.
Mobility and footprint also matter. Tight residential backyards require track-mounted or skid-steer portable rigs. These compact units navigate narrow gates without destroying landscaping. Conversely, heavy-duty agricultural or municipal sites require massive truck-mounted rigs. These trucks carry larger compressors and heavier drill strings.
Consider the Total Cost of Ownership (TCO) and productivity drivers. You should evaluate the following factors:
Engine Horsepower: Look for robust powerplants, such as 350 HP diesels, capable of running heavy hydraulics without overheating.
Automated Rod Handling: Systems that eliminate manual pipe threading save countless labor hours and prevent worker injuries.
Onboard Mud-Management: Integrated shakers and desanders clean fluids efficiently, reducing the need for massive external mud pits.
Fuel Efficiency: Direct-drive hydraulic systems transfer power more cleanly, saving significant diesel costs over a month-long project.
Drilling success extends beyond hitting water. Poor execution leads to catastrophic systemic failures down the road. You must monitor specific implementation risks.
Pressure differential failures represent a major hazard. Consider the danger of over-pumping deep wells. If you have a 90-meter deep well but place the pump at 40 meters, drawing too much water creates a vacuum effect. High flow rates generate massive internal pressure drops. These sudden drops can cause the expensive bottom screens to collapse or implode entirely.
Grouting and cross-contamination present severe health risks. The drilling crew must properly cement the upper annulus. Failure to seal this gap allows surface pathogens, fertilizers, and animal waste to bypass the natural earth filters. This contaminated water flows straight down the outside of the casing into the aquifer. It inevitably leads to failed water quality tests and unsafe drinking conditions.
Site planning requires precise mathematical modeling for specialized scenarios. Community shared wells or agricultural irrigation pivots draw immense amounts of water. Your rig selection must account for drilling larger diameter boreholes. A standard 6-inch residential hole cannot support the heavy-duty booster pumps required to meet agricultural peak water demand calculations.
A modern drilling rig functions as a high-precision instrument. Hoisting power, fluid dynamics, and bit selection must perfectly align with your local geological profile. We cannot treat groundwater extraction as a simple digging exercise. It requires specialized engineering to penetrate bedrock safely and establish a lasting, sanitary water supply.
Buyers and project managers must demand transparency during the procurement phase. Ask your equipment manufacturer or contractor about their fluid management systems. Verify their pullback capacities. Ensure their casing and grouting protocols meet stringent environmental standards before anyone breaks ground.
Take action by consulting with a geotechnical engineer or a specialized rig manufacturer early in your planning phase. Map your exact geological data to the correct machine specifications. This proactive alignment guarantees better water yields, fewer mechanical failures, and a much stronger return on your infrastructure investment.
A: Costs depend heavily on regional geology and total depth. Baseline drilling expenses usually range between $15 and $30 per foot. However, these prices scale upward significantly if you encounter hard rock, require specialized steel casing, or need to transport heavy equipment into remote, hard-to-access locations.
A: Yes, but you face strict limitations. Auger drilling operates much like a giant rotating screw. It proves effective only in very soft, unconsolidated soils. You cannot use an auger in rock, and the method maxes out at a depth of roughly 150 feet.
A: No. There is absolutely no scientific basis for water dowsing. Modern rig deployment relies strictly on concrete data. Engineers use geological surveys, hydrogeological mapping, and preliminary test drilling to locate viable, long-lasting underground aquifers.
A: In positive circulation, the mud pump forces drilling fluid down the inside of the drill rod. The fluid returns up the outside gap, called the annulus. In reverse circulation, fluid flows down the annulus and is vacuumed up the inside of the rod. Reverse circulation is highly preferred for large-diameter wells because it keeps the borehole walls exceptionally clean.
