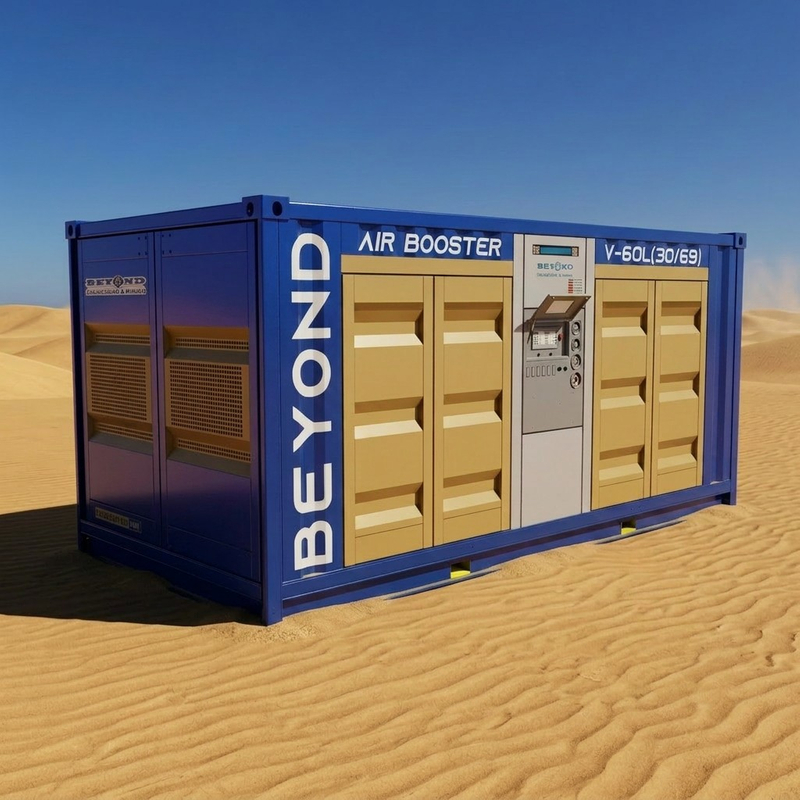

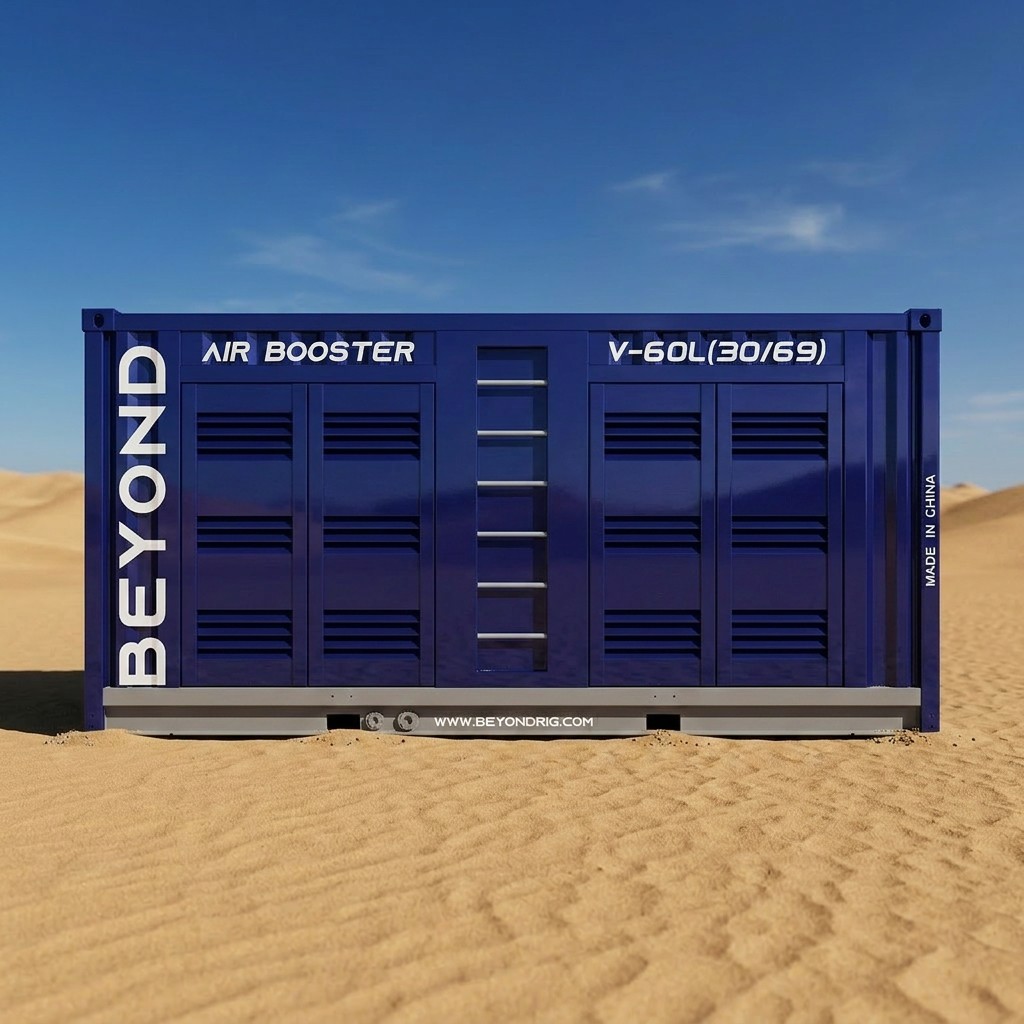

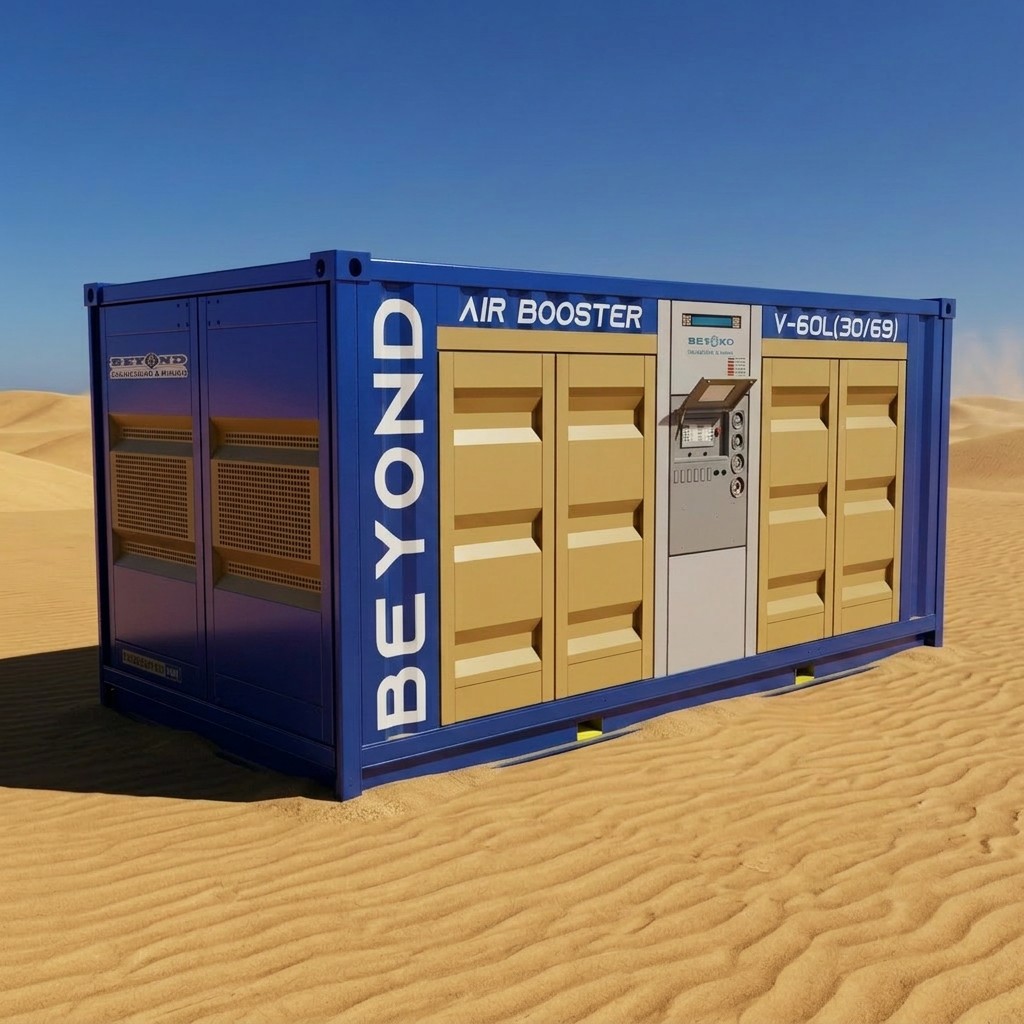

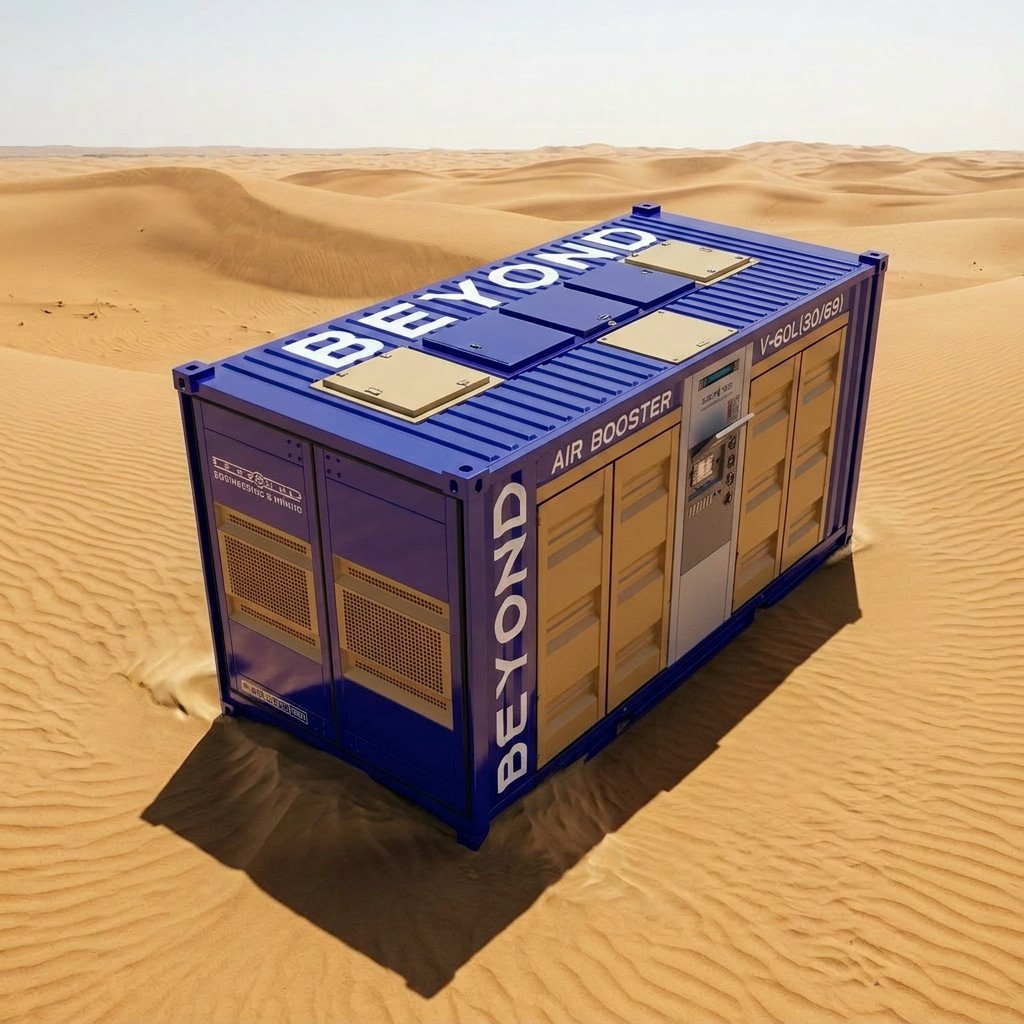

V-60L (30/69) Booster Compressor Main Parameters
Category | Item | Specification |
Unit | Model | V-60L |
Drive Power (KW) | 150 | |
Rotating Speed (r/min) | 900~1500 | |
Inlet Pressure (Bar) | 20~30 | |
Discharge Pressure (Bar) | 69 | |
Discharge Capacity (Nm³/min) | 20~35 | |
Dual Working Condition Switching Function | None | |
Overall Dimensions (L×W×H) | 6000×2350×2600mm | |
Maximum Noise (1m@dB(A)) | 95 | |
Overall Weight (t) | 14 | |
Engine | Model | QSC8.3-260-30 |
Number of Cylinders | 6 Cylinders | |
Maximum Speed (rpm) | 2200 | |
Rated Power (KW) | 194 | |
Idle Speed (rpm) | 800 | |
Displacement (L) | 8.3 | |
Type | Four-stroke, In-line | |
Intake Method | Turbocharged, Air-to-air Intercooled | |
Compression Ratio | 18:1 | |
Rotation Direction | Counterclockwise | |
Intake Valve Clearance (mm) | 0.30 | |
Exhaust Valve Clearance (mm) | 0.55 | |
Compressor | Model | V60 |
Maximum Power (HP) | 250 | |
Rotating Speed (r/min) | 900~1500 | |
Stroke (mm) | 76.2 | |
Air Cylinder Stages | Single Stage (One right, one left) | |
Air Cylinder Bore (inch) | 3 | |
Maximum Allowable Working Pressure of Cylinder (PSI) | 2500 |
