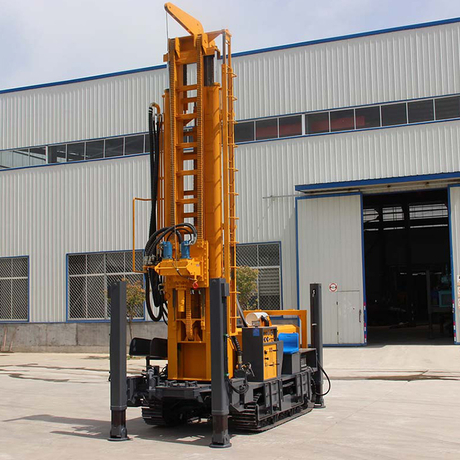

Deep earth exploration demands absolute precision. Drilling operations face immense pressure today. You must maintain sample integrity while navigating challenging geologies. A specialized Reverse Circulation Drilling Rig utilizes dual-wall drill pipe and pressure differentials. It transports drill cuttings and fluids continuously back to the surface through the inner tube.
Unlike conventional direct circulation systems, these rigs offer absolute control over cutting discharge. This engineering advantage makes them highly sought after. They excel in mineral grade control, large-diameter water wells, and environmentally sensitive foundation projects.
Our guide provides a balanced, technical framework for evaluating these advanced systems. You will learn whether your specific drilling operation justifies the higher initial capital expenditure. We evaluate this decision based on formation constraints, sampling accuracy, and project scale.
Operational Efficiency: Delivers laboratory-grade, uncontaminated mineral samples and rapid hole-cleaning by maintaining a controlled internal discharge route.
Application Sweet Spots: Highly effective for large-diameter drilling (600mm to 1000mm+), depths between 3 to 500 meters, and environmentally restricted urban or over-water projects.
Strict Limitations: Requires significant capital investment, larger site footprints, and struggles in highly cohesive clays or homogeneous ultra-hard igneous rock.
Procurement Focus: Assessing rig capability relies heavily on matching compressor output, pullback force, and drill string sizing (typically 4.5 to 5.5 inches) to specific project geology.
The dual-wall pipe system represents the core differentiator of this technology. Air or low-pressure fluid travels down the outer annulus of the drill string. This action forces water, air, and cuttings up through the central inner tube. It relies entirely on a powerful air-lift mechanism. This isolated pathway protects the samples from cross-contamination. It also stabilizes the surrounding borehole walls effortlessly.
Engineers adhere to a strict fluid velocity threshold during operations. The fluid and cutting ascent velocity must remain at a minimum of 2.5 to 3 m/sec. This specific speed successfully lifts coarse cuttings to the surface. It prevents heavy materials from falling back down. Falling debris causes severe blockages deep underground. Maintaining this velocity ensures a clean drill bit face. It directly improves your overall penetration rates.
Once the slurry reaches the surface, it follows a highly controlled path. Proper surface handling ensures accurate sampling and efficient fluid reclamation. The typical sequence unfolds as follows:
The slurry exits the inner tube through a robust top diverter or a specialized swivel.
It travels rapidly through a heavy-duty discharge hose safely away from the rig floor.
The mixture enters a cyclone separator. This device uses centrifugal force to decelerate the cuttings.
The separated material drops onto a vibrating shale shaker.
Clean fluid returns to the active system, while dry cuttings fall into labeled sample bags.
Choosing the right configuration for your Reverse Circulation Drilling Rig depends heavily on local geology. You must match the equipment setup to the specific formation challenges. The table below outlines the three primary configurations used in the field today.
Configuration Type | Ideal Geological Formation | Key Operational Characteristic |
|---|---|---|
Air-Assisted Reverse Circulation | Water-yielding formations (e.g., fractured limestone) | Eliminates pump-priming issues but requires stringent wastewater management at the surface. |
Flooded Reverse Circulation | Loose, unconsolidated formations | Requires maintaining fluid to the top of the annulus using high-viscosity muds or large pumps. |
Dual Tube Flooded Reverse (DTFR) | Large-diameter water wells | Protects borehole walls without invasive muds, ensuring natural flow and faster well development. |
This setup works best for water-yielding formations like heavily fractured limestone. It completely eliminates standard pump-priming issues. The system handles massive inflows of natural groundwater easily. However, you must prepare for significant water discharge. Operators require stringent wastewater management plans at the surface. You cannot simply let excess water flood the drilling pad.
Operators rely on flooded systems for loose, unconsolidated formations. These fragile environments require a constant hydrostatic head. This fluid pressure prevents catastrophic borehole collapse. You must maintain fluid right to the top of the annulus. Extreme fluid loss zones pose a major threat here. They often necessitate high-viscosity muds. You may also need large centrifugal pumps to keep the hole entirely full.
DTFR stands out as a premium hybrid application. Contractors primarily use it for large-diameter water wells. It protects the fragile borehole wall without using invasive muds. Heavy muds often plug water-bearing aquifers permanently. DTFR ensures natural formation flow remains intact. It guarantees faster, cleaner subsequent well development.
Investing in this advanced technology yields distinct commercial benefits. These advantages often outweigh the hefty initial purchase price.
Sample Integrity: The isolated inner tube prevents cross-contamination in mining exploration. Geologists receive pure, depth-accurate chips. This allows for highly accurate in-pit grade control.
Environmental & Compliance Control: The system boasts zero-spill characteristics. It represents the optimal choice for congested urban foundation piling. It is equally perfect for sensitive marine barge operations.
Lifecycle Cost: These rigs are notoriously capital-intensive upfront. However, they reduce long-term operational costs significantly. They lower total diesel consumption due to faster penetration rates. They also minimize costly borehole stress.
Every technology carries inherent limits. You must evaluate the operational risks before committing capital.
Economic Thresholds: DTFR and large-scale setups are typically only cost-effective for large diameters. You need borehole sizes greater than 20 inches to see real economic benefits.
Geological Constraints: The system struggles immensely in sticky, cohesive clays. Clay quickly balls up and clogs the narrow inner tube. It also underperforms in homogeneous ultra-hard igneous rock.
Start-Up Blindspots: Air-lift pressure cannot establish itself immediately at the surface. The first 50 to 80 feet of a bore often require conventional direct circulation. You can transition to reverse circulation only after building sufficient fluid depth.
The rig must feature an air compressor precisely matched to the pipe volume. Mismatched compressors lead to poor lifting velocity and frequent blockages. A 185 cfm compressor represents a well-known sweet spot for standard 4.5-inch pipes. Always verify the onboard compressor capabilities before purchase.
Evaluate the rig's main hoist carefully. Check the maximum pullback force thoroughly. Large-diameter tools carry massive weight. Fluid-filled, heavy dual-wall strings require substantial lifting power. This requirement vastly exceeds the specifications of conventional rigs. You must ensure the mast and winch can handle emergency extraction loads.
High-quality rigs must feature highly responsive air-flow and pressure gauges. Operators fly blind without them. A sudden pressure drop of just 5 lbs acts as a critical early warning sign. It almost always indicates bit plugging. This scenario requires immediate operator intervention. You must lift and rotate the string to prevent a permanently stuck pipe.
Assess the rig compatibility with standard dual-wall pipes. The industry largely relies on 4.0", 4.5", and 5.5" sizes. Larger pipes yield better sample recovery rates. You must also check the robustness of the internal components. High-pressure O-rings and durable polyurethane seals prevent internal fluid bypassing. Faulty seals destroy the vital pressure differential.
Evaluation Component | Minimum Requirement / Best Practice | Risk of Failure |
|---|---|---|
Air Compressor | 185 cfm for 4.5-inch pipes | Cuttings fall back down, causing severe blockages. |
Pullback Capacity | High-tonnage rating suited for fluid-filled dual-wall pipes | Inability to retrieve a stuck drill string. |
Diagnostic Gauges | Real-time pressure sensors with 1-lb sensitivity | Delayed reaction to bit plugging and sudden pressure drops. |
Internal Seals | Heavy-duty polyurethane and specialized O-rings | Loss of inner tube vacuum and pressure differential. |
Look for manufacturers that design versatile hybrid rigs. These machines should seamlessly convert between reverse circulation and conventional direct circulation. Some even handle standard production drilling. This flexibility maximizes your fleet utilization. It ensures your equipment does not sit idle when ground conditions change unexpectedly.
The major operational risk lies in consumable wear. Tungsten carbide bit "buttons" wear down rapidly in abrasive rock. This wear reduces the actual hole diameter over time. A shrinking hole inevitably leads to stuck pipes. Ensure your chosen Reverse Circulation Drilling Rig manufacturer offers reliable aftermarket access. You need rapid delivery of replacement bits and specialized swivels. You will also require specific drilling additives. Stocking ultra-foams or specialized polymers is mandatory for optimal hole cleaning.
Never rely on brochures alone. Prioritize vendors who provide transparent field data. They should offer detailed case studies regarding rig performance. Ask for data sets covering your specific target lithologies. The manufacturer must demonstrate verifiable mechanical uptime. They should also prove precise cuttings-discharge control under strict environmental regulations.
A reverse circulation rig operates as an advanced, high-efficiency asset. Engineers designed it specifically for demanding and sensitive geological conditions. Unmatched discharge control, laboratory-grade sampling accuracy, and superior borehole stability easily outweigh the initial equipment costs.
Contractors should take clear action before making procurement decisions:
Audit your primary geological environments for cohesive clays or excessive loose sands.
Determine your typical borehole diameters to ensure they align with the technology's economic thresholds.
Calculate your required pullback force based on the heaviest fluid-filled dual-wall strings you plan to run.
Consult with manufacturers to match exact compressor outputs to your preferred pipe sizes.
A: The optimal range falls between 600mm and 1000mm in diameter, with depths spanning 3 to 500 meters. Extreme depths beyond this range require specialized booster compressors to maintain the necessary air-lift pressure.
A: It is rarely due to actual pipe failure. Wear on the tungsten carbide drill bit buttons causes the hole gauge to shrink gradually. This narrowing traps newly installed bits or grips the pipe string tightly.
A: Upfront capital expenditure and tooling costs are significantly higher. However, you often achieve lower lifecycle costs. This results from much faster penetration rates, reduced diesel consumption, and minimal surface mud-handling requirements.
