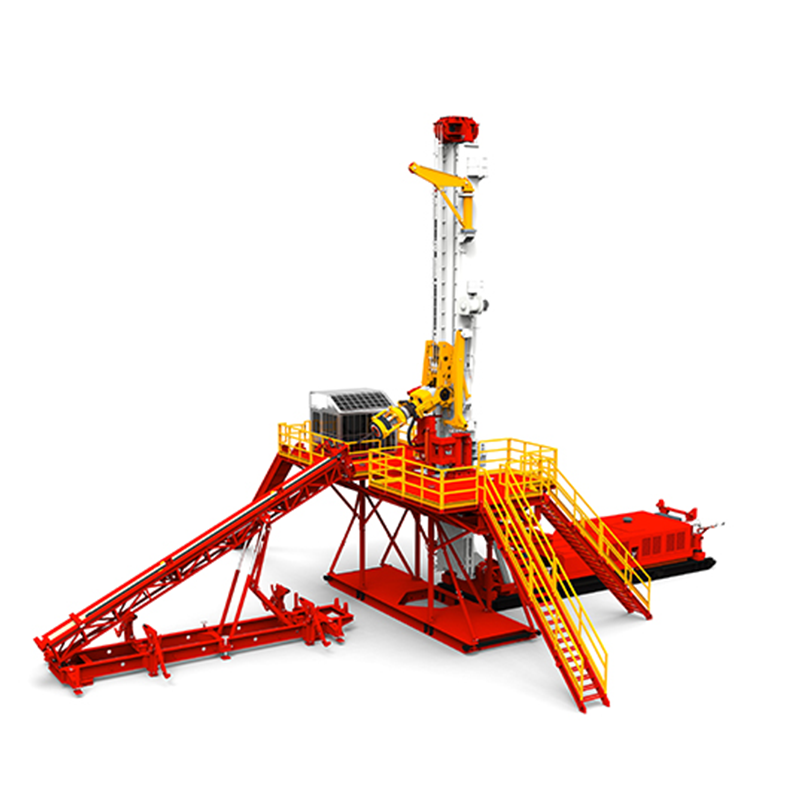

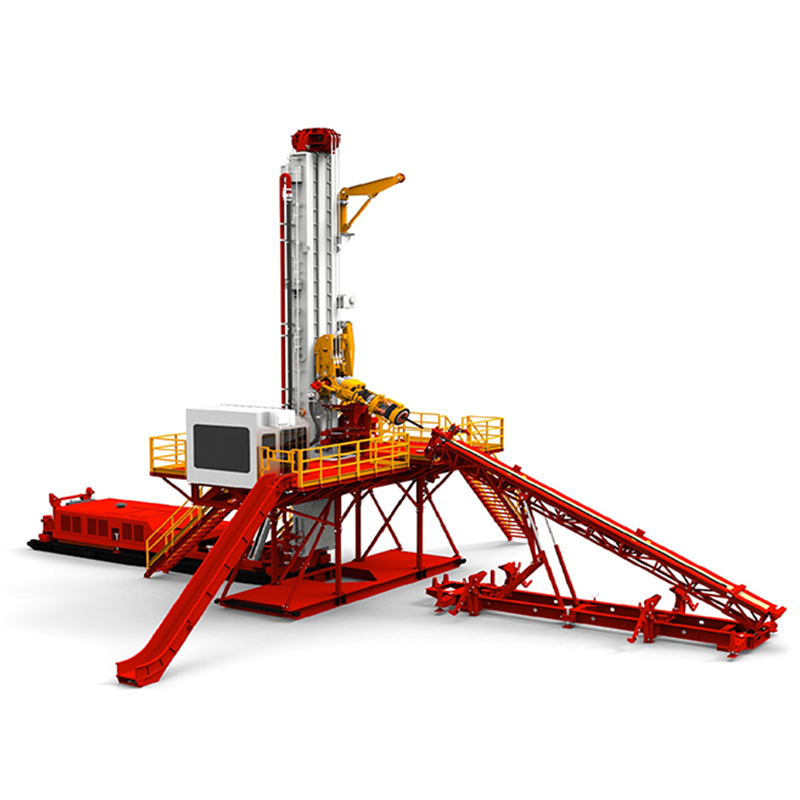

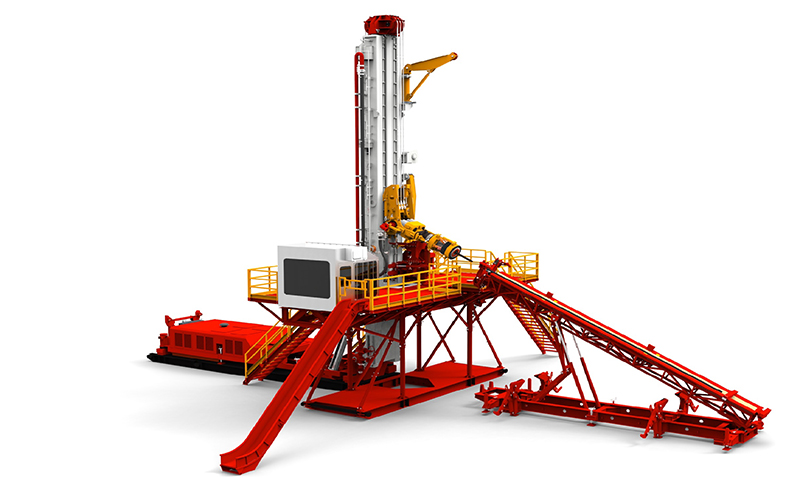

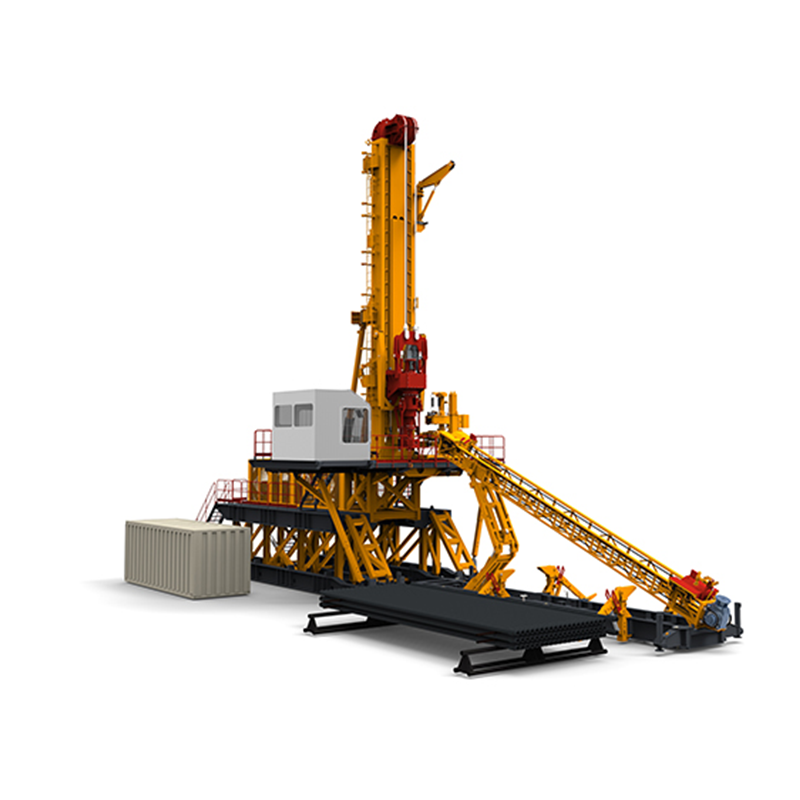

A Multi-Function Intelligent Hydraulic Drill Rig is an advanced drilling machine that integrates intelligent control, powerful hydraulic systems, and versatile design to handle diverse drilling tasks. Unlike single-purpose rigs, this intelligent hydraulic drill rig combines high torque, adjustable speed, and multiple chassis options to adapt to foundation engineering, mining exploration, oil and gas drilling, and other complex applications. Equipped with smart technology, it offers precise operation, efficient performance, and enhanced safety, making it a cornerstone of modern drilling projects where versatility and intelligence are key. The Multi-Function Intelligent Hydraulic Drill Rig redefines drilling efficiency by combining robust mechanical design with cutting-edge control systems.
Model/Item | Specifications | HMD100 | HMD120 | HMD130 | HMD130L | HMD150 | HMD180 |
Feeding system | Lifting Capacity | 100T | 120T | 130T | 130T | 150T | 180T |
Down Force | 20T | 25T | 26T | 26T | 30T | 30T | |
Center hole | Maximum opening diameter | 800mm | 800mm | 820mm | 820mm | 820mm | 820mm |
Working platform Height | 2.08m | 2.08m | 2.08 | / | 4.8m | 5.5m | |
Power Head | Speed | 0-100rpm | 0-100rpm | 0-100rpm | 0-200rpm | 0-80rpm | 0-80rpm |
Torque | 27,500N•M@0-100rpm 9,700N•M@0-300rpm | 31,000N·M@0-100rpm | 31,000N·M@0-100rpm | 35000Nm | 36000Nm@0-80rpm 18000Nm@0-160rpm | 41000Nm@0-80rpm 18000Nm@0-160rpm | |
Spindle ID | 105mm | 115mm | 115mm | 115mm | 115mm | 115mm | |
Mast | Mast Length | Fully extended: 21m | Fully extended: 21m | Fully extended: 21.2m | 15.2m | 21m | 21m |
Power head stroke | 15.2m | 15.2m | 15.2m | 15.2m | 15.2m | 15.2m | |
Suitable for drill pipes and casings | I (18-22 ft)、II (27-30 ft) | I (18-22 ft)、II (27-30 ft) | I (18-22 ft)、II (27-30 ft) | I (18-22 ft)、II (27-30 ft) | I (18-22 ft)、II (27-30 ft) | I (18-22 ft)、II (27-30 ft) | |
Number of stable support legs for drilling rig | 6 | 6 | 6 | 6 | / | / | |
Overall Dimensions | L*W*H | 14.56m*2.95m*4.35m | 14.56m*2.95m*4.35m | 14.8*2.95*4.35m | 15.2*3*3.6m | 13*5.5*2m | 13*5.5*2m |
Total Weight | 60T | 65T | 65T | 60T | / | / | |
Power System | Main Engine | KTA19-P750 | KTA19-P750 | QSK19-C760 | QSM15 77C | Z15CS4 560C | QSK19-C760 |
Power | 567Kw@750hp @1800 rpm | 567Kw@750hp @1800 rpm | 567Kw@760hp @1800 rpm | 563kw 400Kw(E-Motor Option) | 560HP*2 | 760HP*2 | |
Chassis Type | Truck-Mounted | Truck-Mounted | Truck-Mounted | Crawler Type | Skid-Mounted | Skid-Mounted | |
Winch | Lifting Capacity | 3.5T | 3.5T | 3.5T | 3.5T | 3.5T | 3.5T |
Line Diameter | 35m*16mm | 35m*16mm | 35m*16mm | 35m*16mm | 35m*16mm | 35m*16mm | |
Air/Mud Pump Pipeline | pressure | 20.6MPa | 20.6MPa | 35MPa | 35MPa | 35MPa | 35MPa |
Air-compressor | Externally connected | Externally connected | Externally connected | Externally connected | Externally connected | Externally connected | |
Pipeline diameter | 3” | 3” | 3” | 3” | 4” | 4” |
The Multi-Function Intelligent Hydraulic Drill Rig features a high-performance power system with intelligent control, delivering consistent torque and speed adjustments based on drilling conditions. This smart drill rig optimizes energy usage, reducing fuel consumption while maximizing drilling efficiency, even in hard rock or complex formations.
With a powerful feeding system (including adjustable lifting capacity and down force), the Multi-Function Intelligent Hydraulic Drill Rig handles deep drilling, large-diameter holes, and various drill pipe sizes. Its multi-speed power head adapts to different drilling methods, from rotary drilling to core sampling, making it a multi-purpose drill rig for diverse projects.

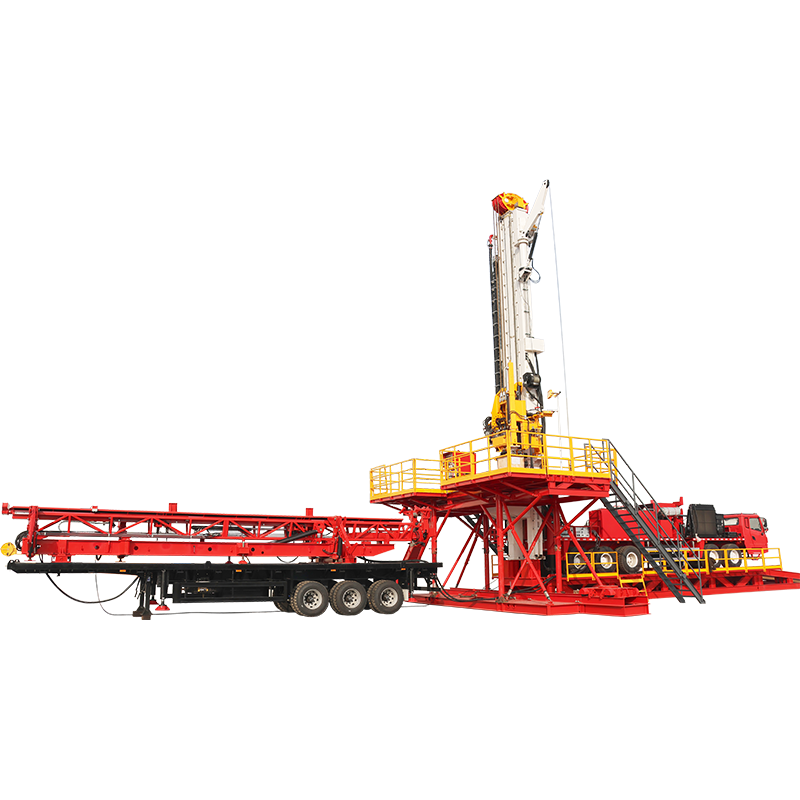

Offering truck-mounted, crawler-type, and skid-mounted chassis options, the Multi-Function Intelligent Hydraulic Drill Rig adapts to different job site conditions. The truck-mounted design enhances mobility for urban projects, while the crawler-type chassis ensures stability on rough terrain, and the skid-mounted option suits fixed-site operations.
The rig's mast features an optimized design with extended length for deep drilling and compact transport dimensions for easy relocation. It supports various drill pipe and casing sizes, ensuring compatibility with different project requirements. The robust structural design withstands high loads and vibrations, ensuring long-term reliability.
Equipped with high-pressure air/mud pump pipelines and a reliable winch system, the Multi-Function Intelligent Hydraulic Drill Rig facilitates efficient cuttings removal and drill bit handling. The integrated pipeline system ensures smooth fluid circulation, while the winch provides stable lifting capacity for heavy components.
The Multi-Function Intelligent Hydraulic Drill Rig is ideal for deep foundation projects such as high-rise buildings, bridges, and dams. Its powerful drilling capabilities and adjustable depth range ensure stable, precise piles that support large structures.
In mining operations, this intelligent hydraulic drill rig is used for exploration drilling, core sampling, and mineral resource assessment. Its versatility allows it to operate in underground or open-pit mines, adapting to different geological formations.
For transportation infrastructure like highways, railways, and subway systems, the rig handles pile drilling, tunnel preparation, and ground stabilization. Its multiple chassis options make it suitable for urban, suburban, or remote construction sites.
Geothermal energy projects require deep, precise drilling to access heat sources. The Multi-Function Intelligent Hydraulic Drill Rig's robust design and high torque handle hard rock formations, supporting geothermal well construction.
In the oil and gas industry, the rig is used for well drilling, completion, and maintenance. Its high-pressure pipeline system and versatile drilling methods adapt to onshore and offshore oil and gas operations, ensuring efficient resource extraction.
The rig features intelligent control systems that adjust power, speed, and torque based on real-time drilling conditions. It may include touchscreen operation, remote monitoring, and diagnostic functions, enhancing precision, efficiency, and safety.
The truck-mounted chassis offers high mobility for projects requiring frequent relocation (e.g., urban construction). The crawler-type chassis provides stability on rough or uneven terrain (e.g., mining sites). The skid-mounted option is ideal for fixed-site operations (e.g., geothermal wells).
Yes, the Multi-Function Intelligent Hydraulic Drill Rig supports various drilling methods, including rotary drilling, core drilling, and percussion drilling. Its adjustable power head speed and torque make it suitable for soil, rock, and other formations.
Absolutely. The rig’s extended mast length, powerful feeding system, and high-torque power head enable deep drilling for foundations, geothermal wells, and oil/gas exploration, meeting the demands of large-scale, deep-drilling projects.
