To whom it will be concern,
It is our great pleasure to introduce our rotary drilling rig to you.
We, “BEYOND”, was established to offer the best solutions for the overseas customers on drilling equipment, spares and services for different drilling application like petroleum, geothermal, water well, HDD and construction foundation etc..

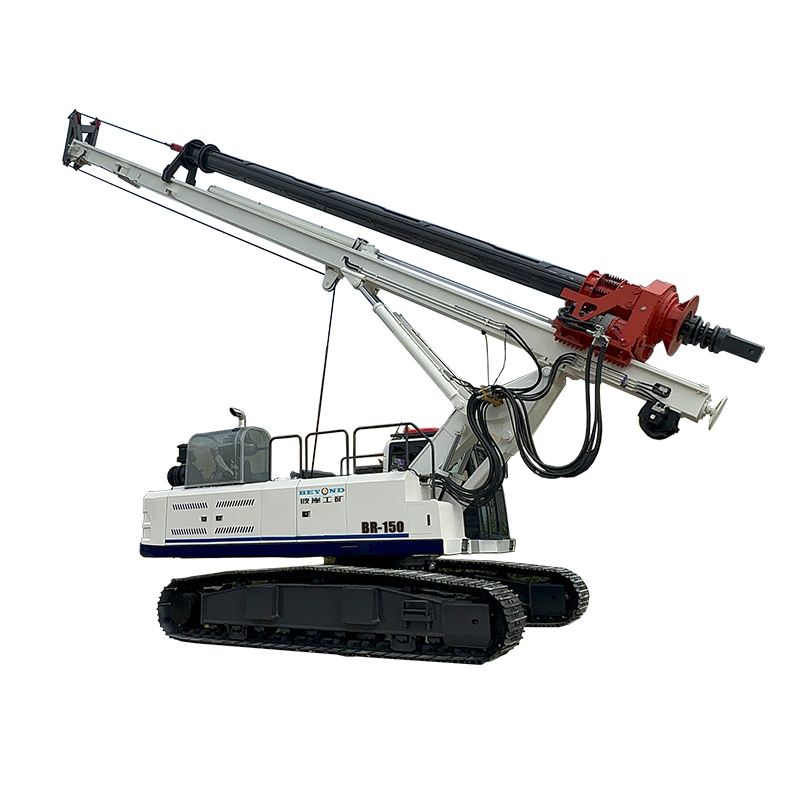

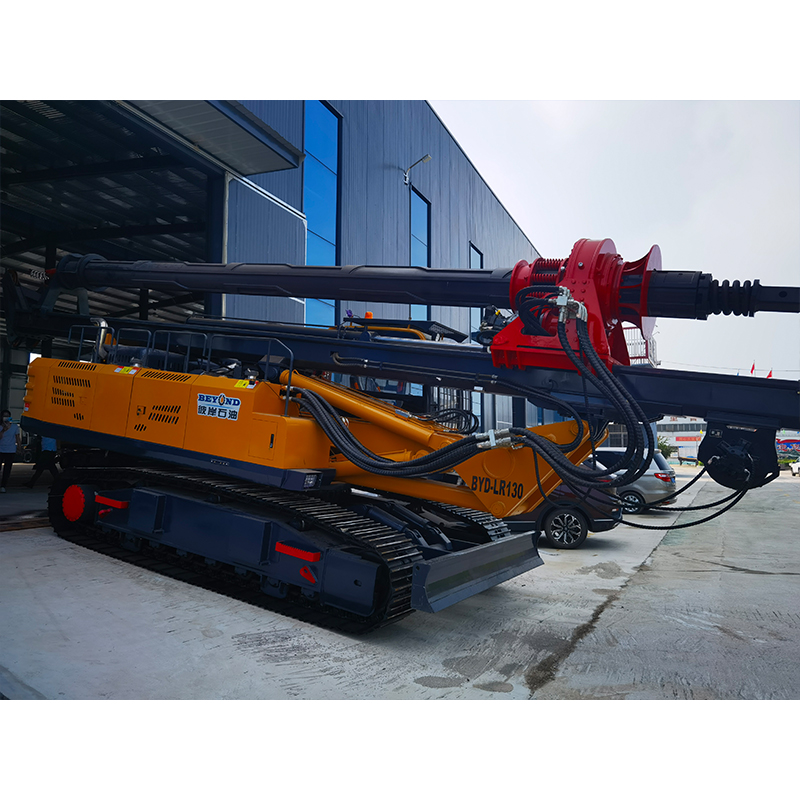

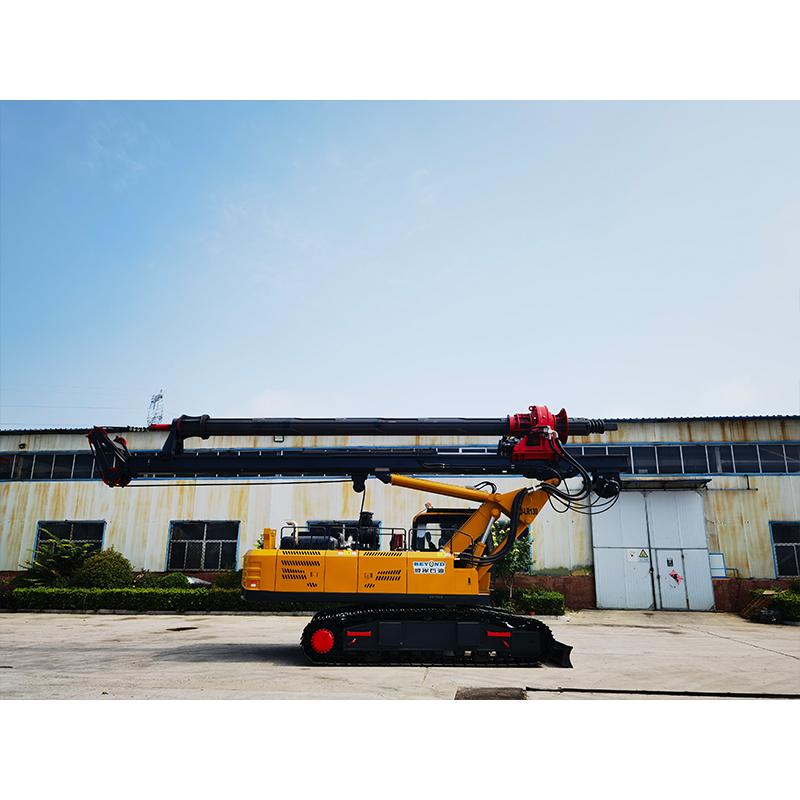

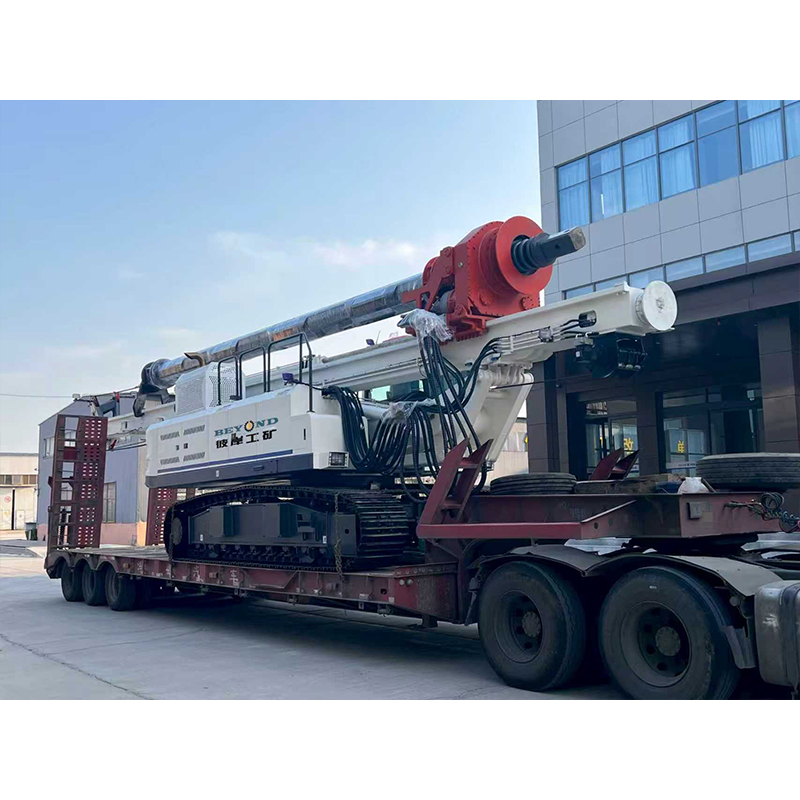

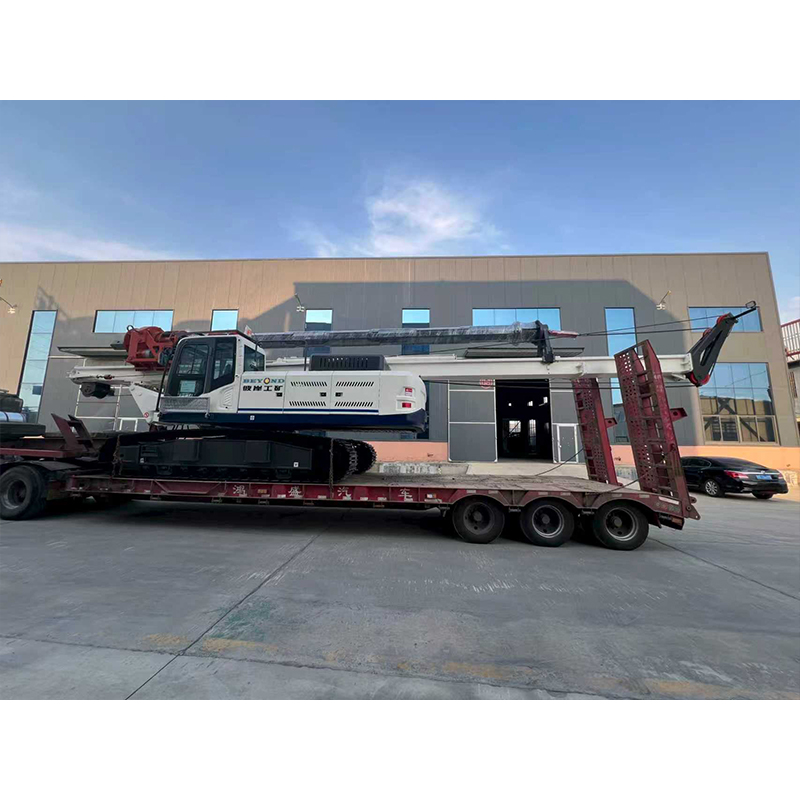

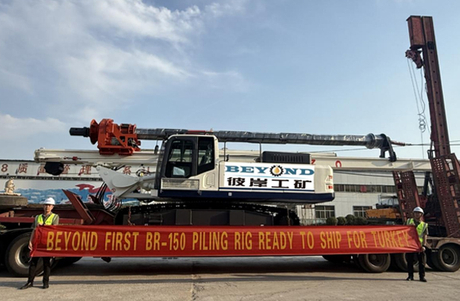

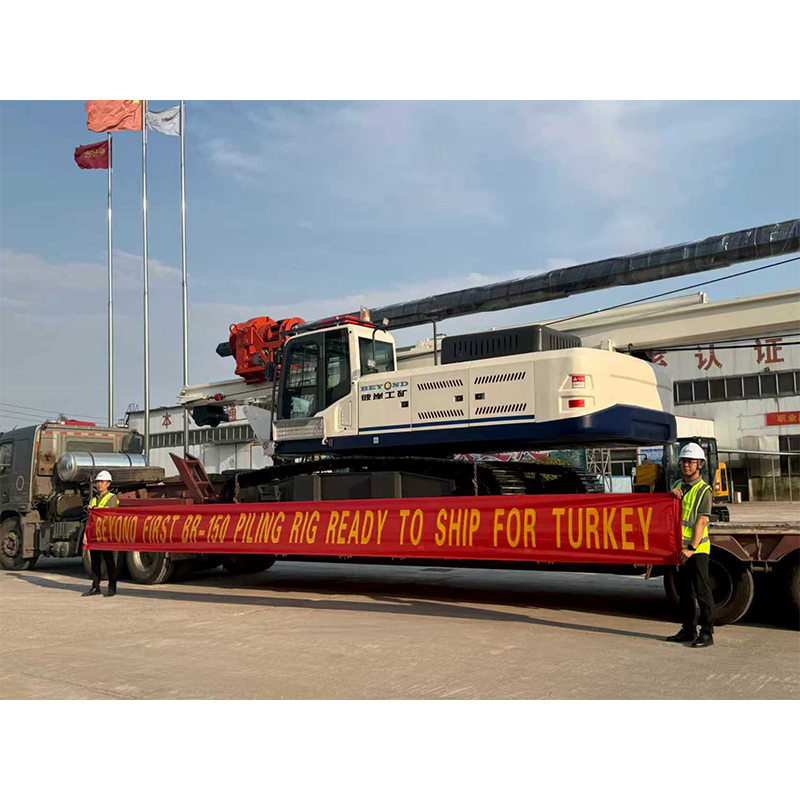

For construction foundation section, we are supplying quality rotary drilling rig (pile rig machine) with different drilling capacity from 10-40meters with model BR-100, BR-130, BR-150, BR180 and BR-220. BR series of rotary drilling machine is applicable to different formation like soil, clay, fill soil, silt, silt layer, strata contain pebbles and gravel etc. It is widely used in different sectors of high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.

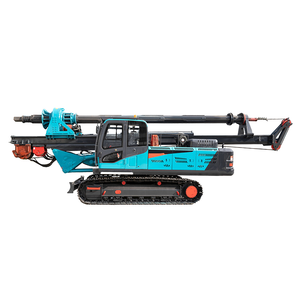

And we can offer customized piling rig based on customer different working conditions like with short Kelly bar for height-limited working environment.

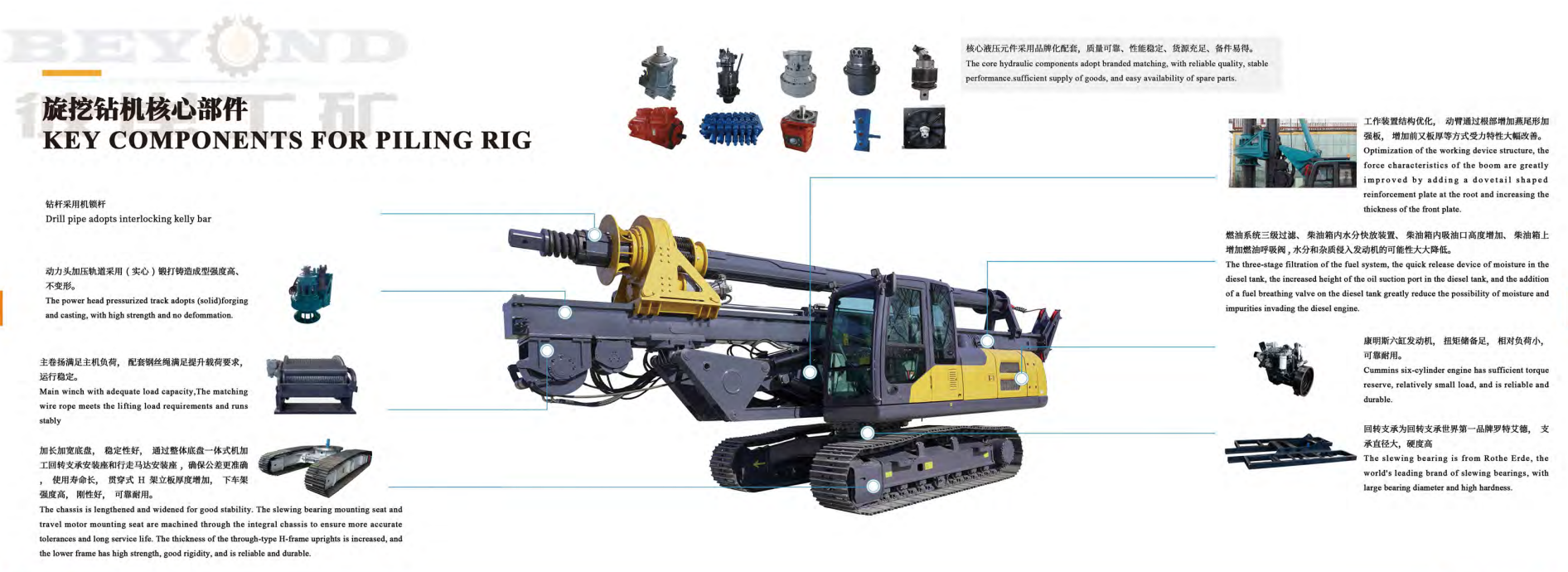

Main Spares Introduction

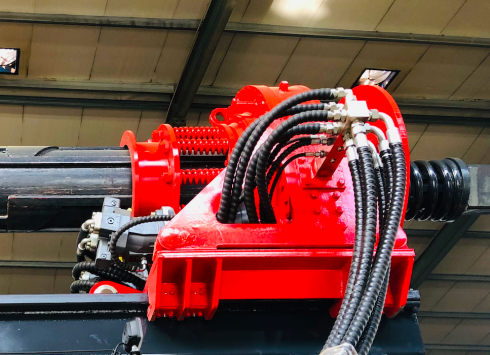

| Power head: Adopting original imported hydraulic pressure motor of Germany and has strong power. Using the low position-oriented structure for the frame, this guarantees the verticality of Kelly bar in the drilling process and avoids the trouble of disassembly in the transportation. |

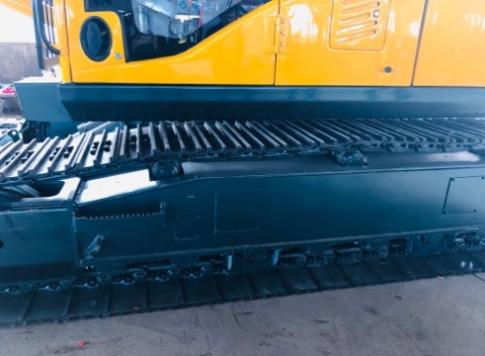

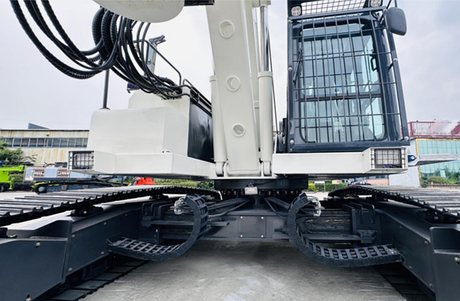

| Travel mechanism: Travel assembly features strong power, heavy lengthened chassis, sloping track frame and good self cleaning. |
| Diesel engine: Original CUMMINS imported completely best performance, low fuel consumption and environmental protection conforms to European class 3 standard. |
| Cab: Layout is compact and reasonable, all kinds of switch, handles, monitoring instruments and focus on around of the seat, so the operation is easy, relaxing and reduces the labor intensity, air-conditioning and heating the stereo provides a comfortable operating environment. |

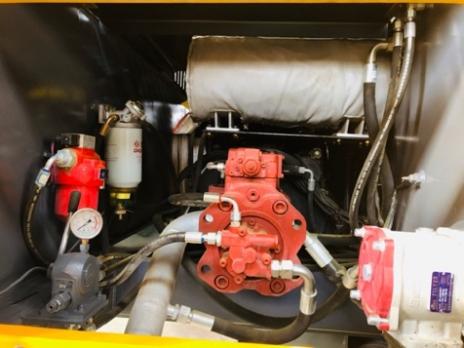

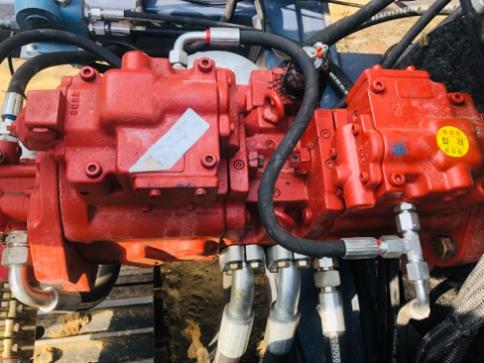

| High efficiency hydraulic pump: Hydraulic pump imported completely from KAWASAKI(Korea),increases main pump flow and hydraulic oil capacity. Install the pilot gear pump and integrated block pipeline to make the operation sensitive and easy to maintain. |

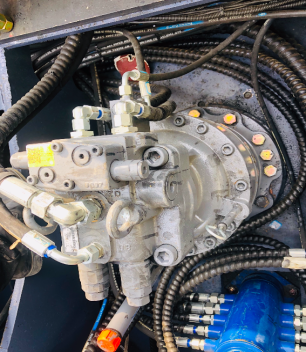

| Swing motor: Swing assembly completely from Lonking(Eaton), designed with anti-reverse valve and shock absorption function to extend service life, with stable and reliable performance. |

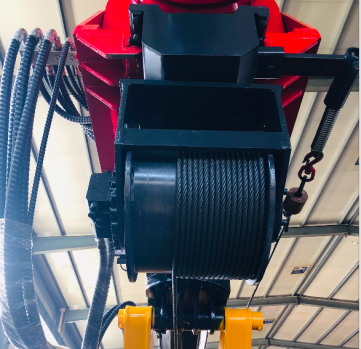

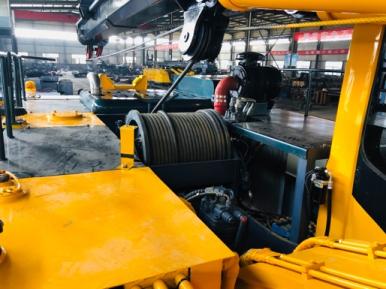

| Adopting original imported hydraulic pressure motor of Rexroth. It has sensitive reacting and can put down freely, which speed can be up to 80m/min and improve the construction efficiency. Main winch lays in the cavity of the U-shape, operator could observe working condition of main winch through the camera. |
| Auxiliary winch: Design a new winch according client’s need with big capacity. |

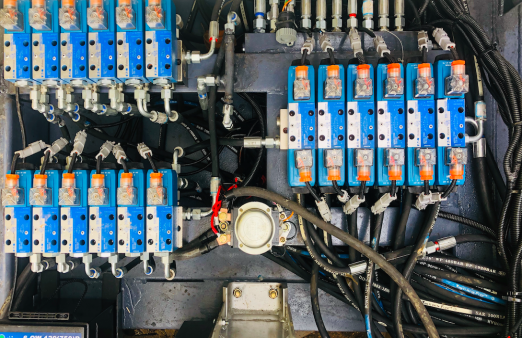

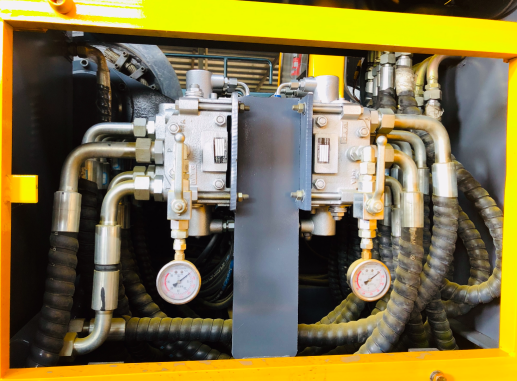

| Solenoid control: The solenoid valve of the hydraulic system has the advantages of simple operation and easy to remote control. |
| Main Control Valve: It’s manufactured by China famous brand North Machine, with very stable operation, and years of mature technical experience. |

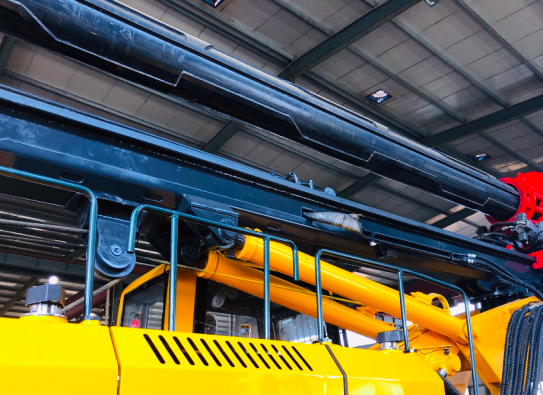

| Interlock Kelly Bar: It adopt the international advanced six-ribs distribution technology. The special heat treatment which make this Kelly bar with high abrasion resistance, compression resistance and excellent welding performance. It is based on domestic rig configuration and condition demand, combined with the home and abroad advanced manufacture technology, supporting domestic and foreign rotary piling rig.
|

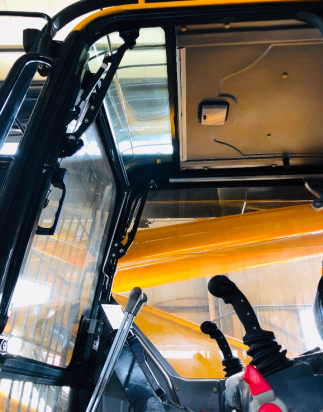

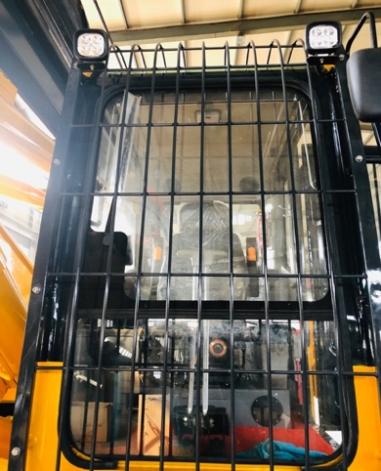

| Cab Glass With Good Vison Field : According to worksite customer’s requirement, design top glass to increase field of vision, more easy for operator to check the work situation.
|

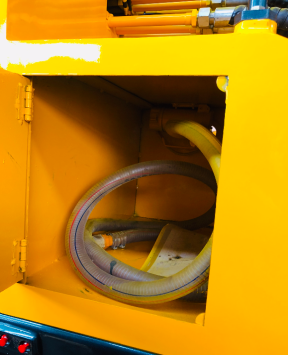

| Special design box: It is special design and needed when operator packing some hand tools, pipes and spares.
|

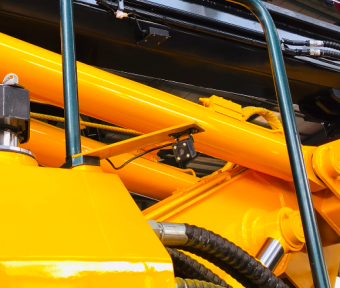

| Camera: 3 cameras clearly to check the operate situation of main winch and environment around when turning the machine.
|

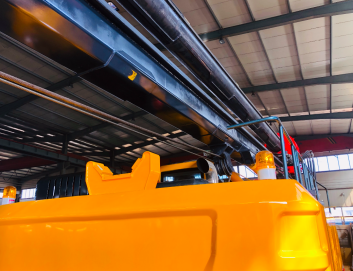

| Thickened Rubber bracket: To protect the Kelley bar from damage and more reliable.
|
Product Advantage
Dual-Function Integration for Versatile Drilling
Combines rotary cutting and static pressure feeding, suitable for both soil and hard rock formations (compressive strength up to 150MPa). One machine meets pile foundation needs for buildings, bridges, and ports, eliminating the need for multiple equipment swaps, boosting construction efficiency by 40%+.
Strong Terrain Adaptability & Mobility
Crawler-type chassis with 450mm ground clearance and 30° climbing capability, stable on muddy or uneven ground. The telescopic drill pipe (max length 30m) allows adjustable drilling depth (3-80m) and diameter (300-2500mm), adapting to diverse foundation requirements.
Efficient Maintenance & Smart Updates
Supports WiFi/USB software updates for continuous performance optimization. Key components (drill bit, hydraulic system) feature quick-disconnect design, reducing maintenance time by 30%. 24/7 online diagnostic system minimizes downtime.
Eco-Friendly & Low Noise Operation
Adopts advanced noise reduction technology (≤75dB at 10m), meeting urban construction standards. No excessive mud discharge, reducing environmental impact. Energy-saving engine cuts fuel consumption by 15% compared to traditional models.
Technical Parameters
Model | BR-100 | BR-130 | BR-150 | BR-180 | BR-220 | ||
Diesel Engine | Manufacturer | Dongfeng Cummins | Dongfeng Cummins | Deutz Germany | Deutz Germany | Deutz Germany | |
Power(Kw) | 154 | 154 | 160 | 180 | 180 | ||
Emission Standard | / | Euro Ⅲ, Euro Ⅳ | Euro Ⅲ, Euro Ⅳ | Euro V | Euro V | Euro V | |
Drilling Depth | M | 20 | 30 | 35 | 50 | 50 | |
Drilling Diameter | mm | 400-1200 | 500-1200 | 500-1200 | 500-1500 | 500-1500 | |
Power Head | Torque | Kn/M | 100 | 130 | 150 | 200 | 215 |
Drilling Speed | R/Min | 8-45 | 8-48 | 8-48 | 8-35 | 8-35 | |
Main Winch | Maximum Lifting Force | Kn | 120 | 130 | 150 | 200 | 215 |
Maximum Lifting Speed | M/ Min | 50 | 60 | 60 | 60 | 60 | |
Wire Rope Diamete | mm | 24 | 24 | 24 | 28 | 28 | |
Auxiliary Winch | Maximum Lifting Force | Kn | 30 | 30 | 30 | 30 | 50 |
Maximum Lifting Speed | M/ Min | 55 | 55 | 55 | 55 | 55 | |
Wire Rope Diameter | mm | 12 | 12 | 14 | 16 | 16 | |
Pressing Cylinder | Maximum Pressurization | Kn | 120 | 120 | 120 | 180 | 180 |
Maximum Lifting Force | Kn | 120 | 120 | 120 | 130 | 150 | |
Stroke | mm | 2500 | 2500 | 3500 | 3500 | 4000 | |
Chassis | Walking Speed | Km/H | 5 | 5 | 5 | 4 | 5 |
Maximum Climbing Slope | % | 30 | 30 | 30 | 30 | 30 | |
Track Shoe Width | mm | 600 | 600 | 600 | 700 | 700 | |
Track Outer Width | mm | 2600 | Telescopic Chassis 3000-4000 | Telescopic Chassis 3000-4000 | Telescopic Chassis 3000-4200 | Telescopic Chassis 3000-4200 | |
Total Length Of Track | mm | 4200 | 4600 | 5600 | 4825 | 4600 | |
Hydraulic System | Working Pressure | Mpa | 30 | 30 | 30 | 30 | 30 |
Overall Dimensions | Working State Dimensions | mm | 6300*2600*12500 | 6700*4000*13500 | 6700*4000*15500 | 7900*4200*19000 | 7800*4200*19000 |
Transportation Status Dimensions | mm | 10800*2600*3350 | 11500*3000*3450 | 13500*3000*3650 | 15442*3000*3600 | 15400*3000*3600 | |
Rotation Radius | mm | 3500 | 3500 | 4500 | 3900 | 3900 | |
Rotation Angle | ° | 360 | 360 | 360 | 360 | 360 | |
Total Weight | T | 23.5 | 31 | 42.5 | 52 | 54.8 | |
Product Uses
Here are four specific application scenarios of rotary drilling rigs：
1.High-Rise Building Foundation Construction
It is mainly used to drill cast-in-place piles for high-rise residential buildings, office buildings and commercial complexes. It can adapt to different soil layers (such as clay and sandy soil) and ensure the foundation’s bearing capacity, laying a solid foundation for super high-rise structures.
2.Transportation Infrastructure Construction
Applied in building pile foundations for highway bridges, railway viaducts and subway stations. Its strong terrain adaptability enables operation in mountainous, riverside and other complex areas, ensuring the stability and safety of transportation engineering foundations.
3.Water Conservancy & Port Engineering
Used for drilling piles in sluice gates, dam foundations and port wharves. With corrosion-resistant components and stable drilling performance, it can work in shallow water or humid environments, meeting the foundation construction needs of water-related projects.
4.Urban Utility Project Construction
Applied to lay piles for underground pipe galleries, sewage treatment plants and power transmission towers. Its low-noise and low-vibration features minimize impact on surrounding residents, suitable for urban core area construction.
Product Operate Guide
Power on: Check fuel, hydraulic oil, and battery; turn the key to start the Cummins engine .
Operation: Use the 7-inch touchscreen to select modes. Adjust rotary speed (6-35 rpm) and propulsion force (max 100 kN) based on formations.
Drilling: Lower the drill bit, monitor depth (±2cm accuracy) via the system; use main winch (120 kN pull) to lift cuttings.
Shutdown: Stop drilling, retract the drill pipe, turn off the engine, and clean the drill bit.
For detailed specs & maintenance, download the full manual: [Rotary Drilling Rig Full User Manual.
